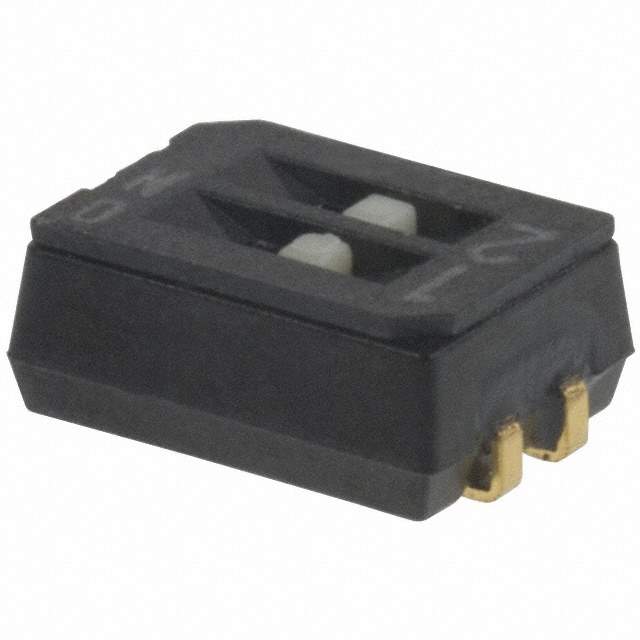

CHS-02TA Real Image
Same model may have multiple batches, images only for reference.

CHS-02TA

Part No CHS-02TA
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 6V
Datasheet
CHS-02TA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 2
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.098" (2.50mm)
Mounting SMD (SMT)
Termination Style J Lead
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.161" (4.10mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 2,000 Cycles
Win Source Part Number 1029214-CHS-02TA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CHS-02TA CAD Model

Description

The CHS-02TA switch from Copal Electronics Inc. is a SPST slide switch that is designed for use in a variety of applications, including power supplies, voltage regulators, and rectifiers.

  • Positions: 2
  • Pitch: 0.050" (1.27mm)
  • Termination Style: J-lead
  • Seal: Tape seal
  • Contact Finish: Gold
  • Voltage Rating: 6VDC
  • Current Rating: 100mA
  • Height Above the Board: 0.098" (2.50mm)
  • Length: 0.161" (4.10mm)
  • Package: Reel
  • Mounting: SMD (SMT)
