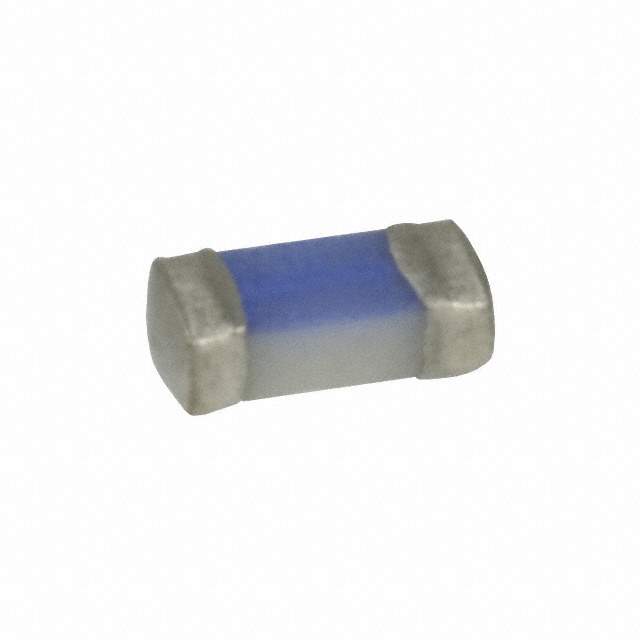

TR/0603FA500-R Real Image
Same model may have multiple batches, images only for reference.

TR/0603FA500-R

Part No TR/0603FA500-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fuses
Description FUSE BOARD MNT 500MA 32VAC 50VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500mA
Voltage Rating - AC 32V
Voltage Rating - DC 50V
Response Time Fast Blow
Manufacturer Package 0603
Mounting Style SMD
Breaking Capacity at Rated Voltage 50A AC, 35A DC
Melting I2t 0.00193
Approvals CSA, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.81mm x 0.48mm)
DC Cold Resistance 1.025 Ohms
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802230-TR/0603FA500-R
Ultra Librarian 3D Model Ultra Librarian TR/0603FA500-R CAD Model

Description

The 802230-TR/0603FA500-R SMD fuse is designed for board mount applications by Eaton - Electronics Division.

  • Voltage Rating: 32V AC / 50V DC
  • Fuse Type: Fast-blow
  • Current Rating: 500mA
  • Breaking Capacity: 50A AC, 35A DC @ Rated Voltage
  • DC Cold Resistance: 1.025 Ohms
  • Operating Temperature: -55°C to 125°C
  • Package Type: Reel
  • Manufacturer Pack Quantity: 5,000
  • Approvals: CSA, UL
