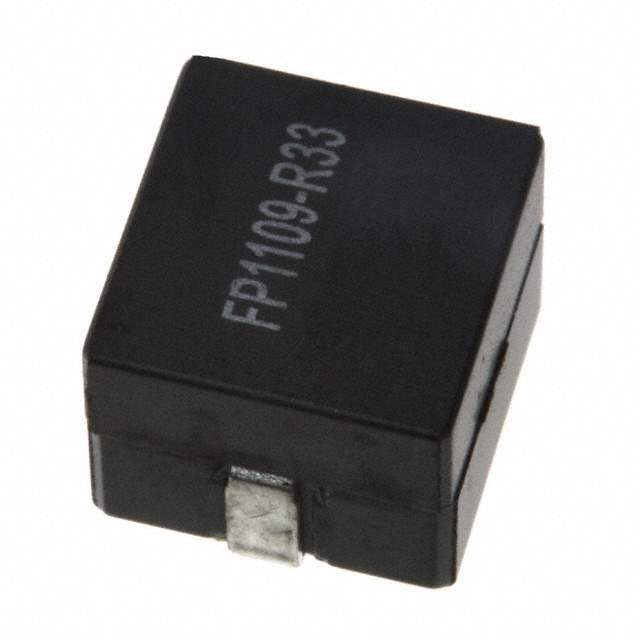

FP1109-R33-R Real Image
Same model may have multiple batches, images only for reference.

FP1109-R33-R

Part No FP1109-R33-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description High Current, High Frequency, Power Inductors | FIXED IND 311NH 35A 0.42 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton - Electronics Division
Packaging Tape and Reel
Type Wirewound
Material - Core Ferrite
Inductance 311nH
Tolerance ±10%
Current Rating (Amps) 35A
Current - Saturation 44A
Shielding Unshielded
DC Resistance (DCR) 0.42mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.441" L x 0.441" W (11.20mm x 11.20mm)
Height - Seated (Maximum) 0.354" (9.00mm)
Manufacturer Pack Quantity 350
MSL Level 1 (Unlimited)
Win Source Part Number 714257-FP1109-R33-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FP1109-R33-R CAD Model

Description

The Eaton Electronics Division 714257-FP1109-R33-R wirewound inductor is an ideal choice for a variety of applications.

  • Inductance: 311nH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Saturation Current: 44A
  • DC Resistance: 0.42mOhm
  • Temperature Range: -40°C to 125°C
  • Package Height: 0.354" (9.00mm)
  • Package: Nonstandard
  • Current Rating: 35A
  • Inductance Frequency Test: 100kHz
  • Supply and Demand Status: Balance in supply and demand status
  • Manufacturer Pack Quantity: 350
