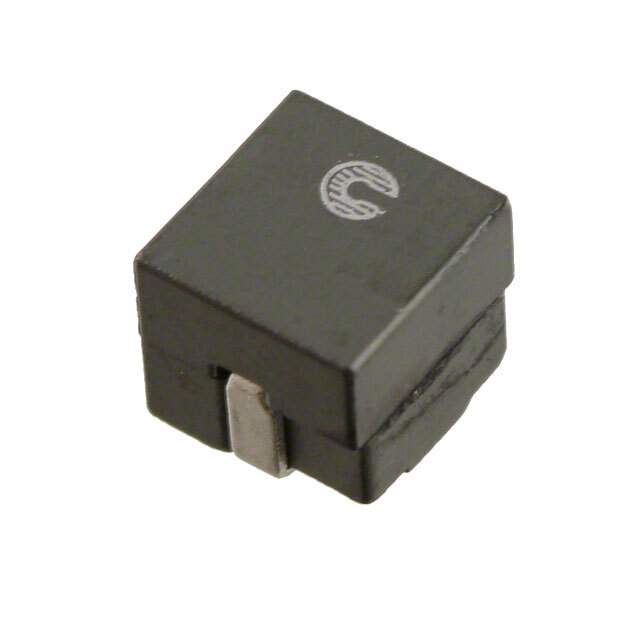

FP0807R1-R20-R Real Image
Same model may have multiple batches, images only for reference.

FP0807R1-R20-R

Part No FP0807R1-R20-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 200NH 49A 0.5 MOHM SMD / High Current, High Frequency, Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 200nH
Tolerance ±10%
Current Rating (Amps) 49A
Current - Saturation 38A
Shielding Unshielded
DC Resistance (DCR) 0.5mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.299" L x 0.291" W (7.60mm x 7.40mm)
Height - Seated (Maximum) 0.276" (7.00mm)
Manufacturer Pack Quantity 600
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807239-FP0807R1-R20-R
Ultra Librarian 3D Model Ultra Librarian FP0807R1-R20-R CAD Model

Description

The Eaton - Electronics Division 807239-FP0807R1-R20-R is a wirewound inductor that comes with an unshielded shielding. Eaton - Electronics Division

  • Inductance: 200nH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • DC Resistance (DCR): 0.5mOhm
  • Saturation Current: 38A
  • Maximum Current: 49A
  • Temperature Range: -40°C to 125°C
  • Dimensions: 0.299" L x 0.291" W (7.60mm x 7.40mm)
  • Maximum Seated Height: 0.276" (7.00mm)
  • Manufacturer Package: Nonstandard
  • Package Quantity: 600
  • MSL Level: 1 (Unlimited)
