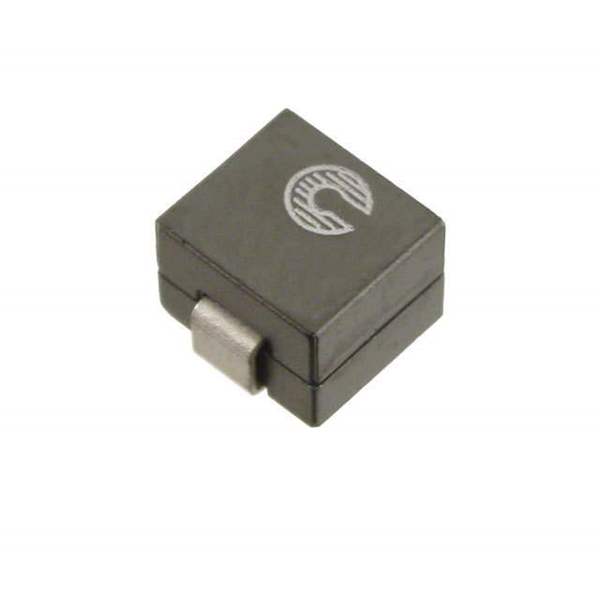

FP0705R2-R10-R Cooper Bussmann, Inc.
Same model may have multiple batches, images only for reference.

FP0705R2-R10-R

Part No FP0705R2-R10-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description High Current, Low-Profile Power Inductors | FIXED IND 105NH 38A 0.32 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 105nH
Tolerance ±10%
Current Rating (Amps) 38A
Current - Saturation 44A
Shielding Unshielded
DC Resistance (DCR) 0.32mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Maximum) 0.195" (4.95mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1175055-FP0705R2-R10-R
Manufacturer Homepage www.cooperbussmann.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FP0705R2-R10-R CAD Model

Description

The Eaton - Electronics Division FP0705R2-R10-R is an unshielded wirewound inductor manufactured by Eaton - Electronics Division.

  • Inductance: 105nH
  • Tolerance: ±10%
  • Current Saturation: 44A
  • DC Resistance: 0.32mOhm
  • Core Material: Ferrite
  • Temperature Range: -40°C to 125°C
  • Package: Non-Standard
  • Height: 0.195" (4.95mm) max seated
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (unlimited)
  • Parts Dimension: 0.276" L x 0.276" W (7.00mm x 7.00mm)
  • Current Rating: 38A
  • Inductance Frequency-Test: 100kHz
