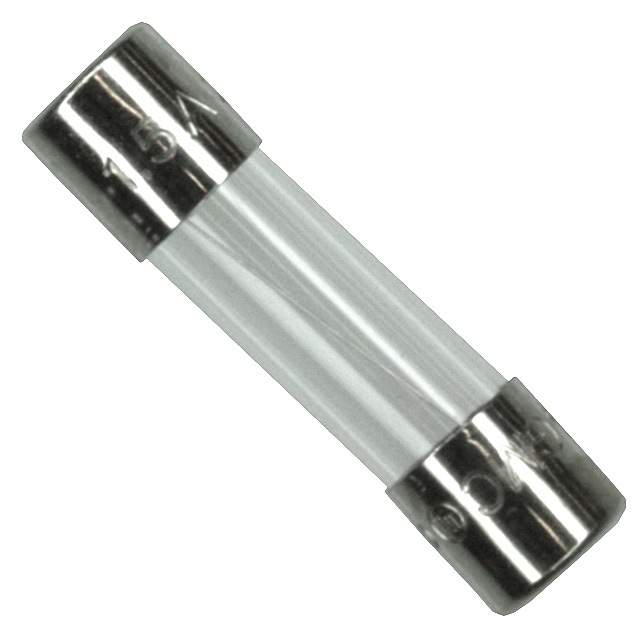

BK/GMC-3.5-R Real Image
Same model may have multiple batches, images only for reference.

BK/GMC-3.5-R

Part No BK/GMC-3.5-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fuses
Description FUSE GLASS 3.5A 125VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Bulk
Fuse Type Cartridge, Glass
Current Rating (Amps) 3.5A
Voltage Rating - AC 125V
Response Time Medium Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 10kA
Melting I2t 25
Approvals CSA, KC-MARK, MITI, UL
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.022 Ohms
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809466-BK/GMC-3.5-R
Ultra Librarian 3D Model Ultra Librarian BK/GMC-3.5-R CAD Model

Description

The 809466-BK/GMC-3.5-R fuse from Eaton - Electronics Division is a medium blow glass cartridge fuse.

  • Voltage Rating: 125V
  • Current Rating: 3.5A
  • Breaking Capacity: 10kA
  • DC Cold Resistance: 0.022 Ohms
  • Approvals: CSA, KC-MARK, MITI, UL
  • Mounting: Holder
  • Dimensions: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Package: 5mm x 20mm
  • Pack Quantity: 100
  • Supply and Demand Status: Limited
