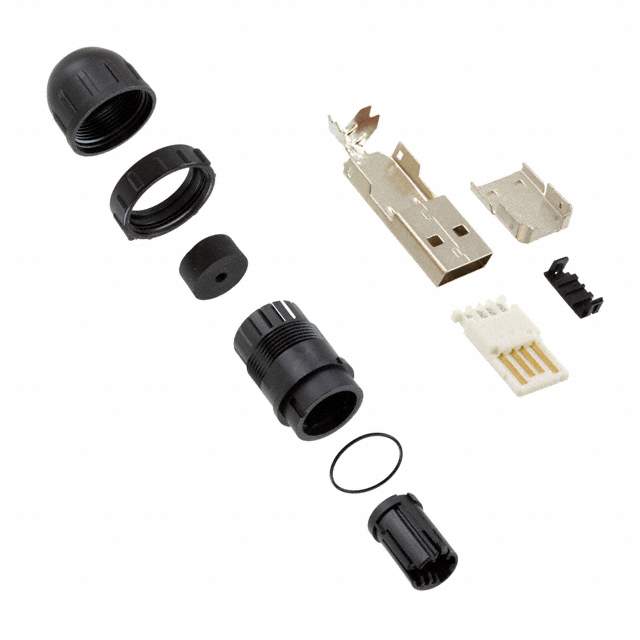

DCC-USBAT-180 Real Image
Same model may have multiple batches, images only for reference.

DCC-USBAT-180

Part No DCC-USBAT-180
Manufacturer Conxall/Switchcraft
Catalog USB, DVI, HDMI Connectors
Description CONN USB A PLUG 2.0 THREADED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Conxall/Switchcraft
Packaging Bulk
Status Active
Connector Type USB - A
Number of Contacts 4
Gender Plug
Specifications USB 2.0
Mounting Free Hanging (In-Line)
Features Circular Threaded Coupling
Ingress Protection IP67/68 - Dust Tight, Waterproof
Temperature Range - Operating 0°C to 50°C
Number of Ports 1
Current Rating 1.5A
Mating Cycles 350
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color White
Win Source Part Number 1022137-DCC-USBAT-180
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DCC-USBAT-180 CAD Model

Description

The Conxall/Switchcraft 1022137-DCC-USBAT-180 is a high-quality USB-A connector with a circular threaded coupling.

  • Manufacturer: Conxall/Switchcraft
  • Current Rating: 1.5A
  • Ingress Protection: IP67/68 (dust-tight and waterproof)
  • Number of Contacts: 4
  • Connector Type: Plug
  • Contact Finish: Gold
  • Operating Temperature: 0°C to 50°C
  • Mating Cycle: 350
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
