Same model may have multiple batches, images only for reference.

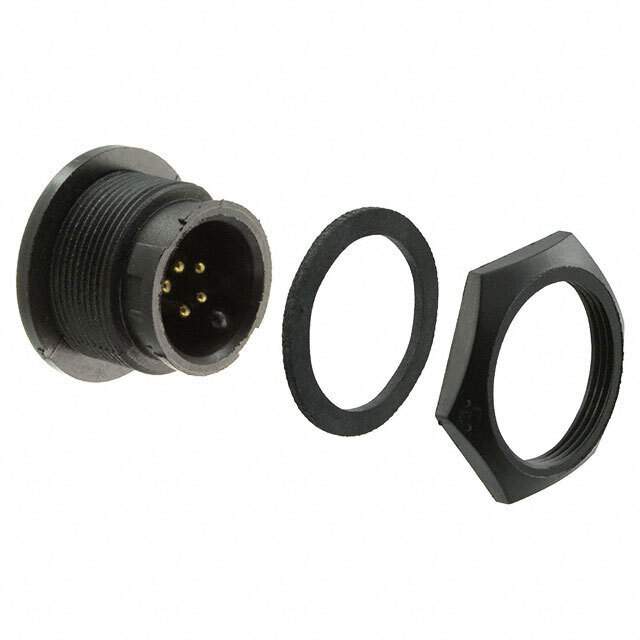

7281-5PG-300 Real Image
Same model may have multiple batches, images only for reference.

7281-5PG-300

Part No 7281-5PG-300
Manufacturer Conxall/Switchcraft
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 5POS GOLD SOLDER / 5 Position Circular Connector Receptacle, Male Pins Solder
Datasheet
7281-5PG-300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Conxall/Switchcraft
Series Mini-Con-X®
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 5
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Termination Solder
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Polyamide (PA) , Nylon
Contact Finish - Mating Gold
Color Black
Ingress Protection Weathertight
Shielding Unshielded
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600V
Temperature Range - Operating -40°C ~ 115°C
Backshell Material, Plating Polyamide (PA) , Nylon
Contact Material Brass
Applications Automotive, Communication Systems, Instrumentation
Base Product Number 7281-5PG
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1349592-7281-5PG-300
Ultra Librarian 3D Model Ultra Librarian 7281-5PG-300 CAD Model

Description

The Conxall/Switchcraft 7281-5PG-300 is a circular connector assembly that is part of the Mini-Con-X series.

  • Color: Black
  • Connector Type: Receptacle Male Pins
  • Fastening Type: Bayonet Lock
  • Voltage Rating: 600V
  • Ingress Protection: Weathertight
  • Shielding: Unshielded
  • Applications: Automotive, Communication Systems, Instrumentation
  • Current Rating: Varies by Wire Gauge
  • Mounting Type: Panel Mount, Through Hole
  • Temperature Range: -40°C to 115°C
  • ECCN: EAR99 Compliant
