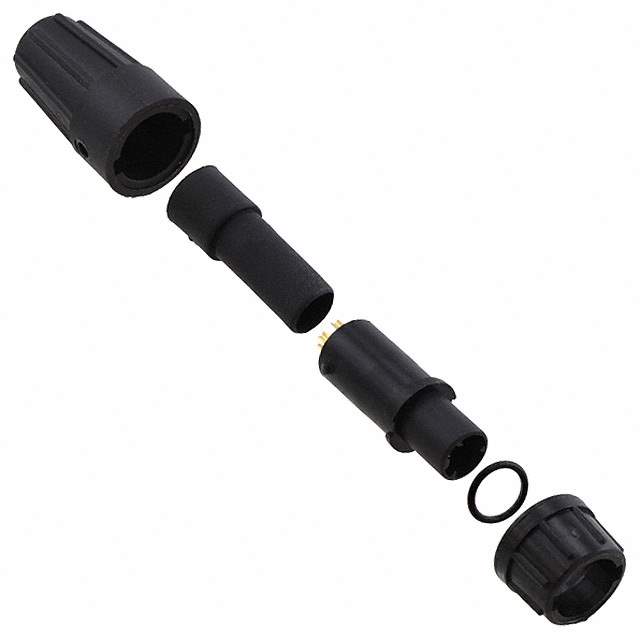

16982-7PG-522 Real Image
Same model may have multiple batches, images only for reference.

16982-7PG-522

Part No 16982-7PG-522
Manufacturer Conxall/Switchcraft
Catalog Circular Connectors - Assemblies
Description CONN PLUG MALE 7P GOLD SLDR CUP / 7 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet
16982-7PG-522 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Conxall/Switchcraft
Packaging Bulk
Connector Type Plug, Male Pins
Number of Positions 7
Mounting Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation B
Primary Material Plastic
Shell Material Thermoplastic
Contact Finish - Mating Gold
Color Black
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 HB
Features Backshell
Shielding Unshielded
Current Rating (Amps) 3.5A
Voltage Rating 600VAC/DC
Cable Opening 0.220" ~ 0.230" (5.59mm ~ 5.84mm)
Temperature Range - Operating -40°C ~ 85°C
Backshell Material, Plating Thermoplastic
Contact Material Copper Alloy
Applications Data, Industrial, Instrumentation, Medical
Base Product Number 16982-7P
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number 169827PG522,SC1431
Standard Package 100
Win Source Part Number 1334577-16982-7PG-522
Ultra Librarian 3D Model Ultra Librarian 16982-7PG-522 CAD Model

Description

The Conxall/Switchcraft 16982-7PG-522 is a circular connector assembly component.

  • Color: Black
  • Feature: Backshell
  • Connector Type: Plug, Male Pin
  • Termination: Solder Cup
  • Fastening Type: Bayonet Lock
  • Contact Material: Copper Alloy
  • Voltage Rating: 600VAC/DC
  • Ingress Protection: IP67 (Dust Tight, Waterproof)
  • Standard Package: 100
  • Mounting: Free Hanging (In-Line)
