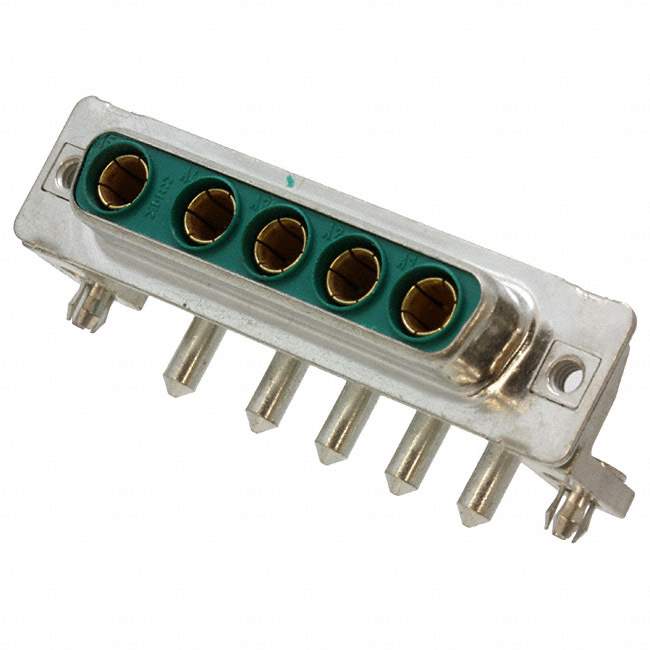

3005W5SXX56N40X Real Image
Same model may have multiple batches, images only for reference.

3005W5SXX56N40X

Part No 3005W5SXX56N40X
Manufacturer Conec
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 5POS R/A SLDR / 5 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Datasheet
3005W5SXX56N40X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Conec
Package Tray
Connector Style D-Sub, Combo
Connector Type Receptacle, Female Sockets
Number of Positions 5 (Power)
Number of Rows 1
Mounting Type Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B) - 5W5
Contact Type Power
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 20A
Backset Spacing 0.459" (11.65mm)
Features Board Lock
Voltage Rating 250V
Color Green
Dielectric Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 3005W5S
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339299-3005W5SXX56N40X
Ultra Librarian 3D Model Ultra Librarian 3005W5SXX56N40X CAD Model

Description

The 3005W5SXX56N40X is a 5-position (power) D-sub connector assembly from Conec.

  • Color: Green
  • Features: Board Lock
  • Connector Type: D-Sub
  • Gender: Receptacle, Female Sockets
  • Contact Type: Power
  • Row Count: 1
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Packaging: Tray
  • Contact Form: -
  • Wire Gauge: Not Specified
  • Ingress Protection: Not Specified
  • Material Flammability Rating: UL94 V-0
  • Shell Material: Steel
  • Shell Finish: Tin Plated
  • Dielectric Material: Polybutylene Terephthalate (PBT) , Glass Filled
  • Shell Size, Connector Layout: 3 (DB, B) - 5W5
  • Mounting Type: Through Hole, Board Edge, Right Angle
  • Temperature Range: -55°C to 125°C
  • Backset Spacing: 0.459" (11.65mm)
