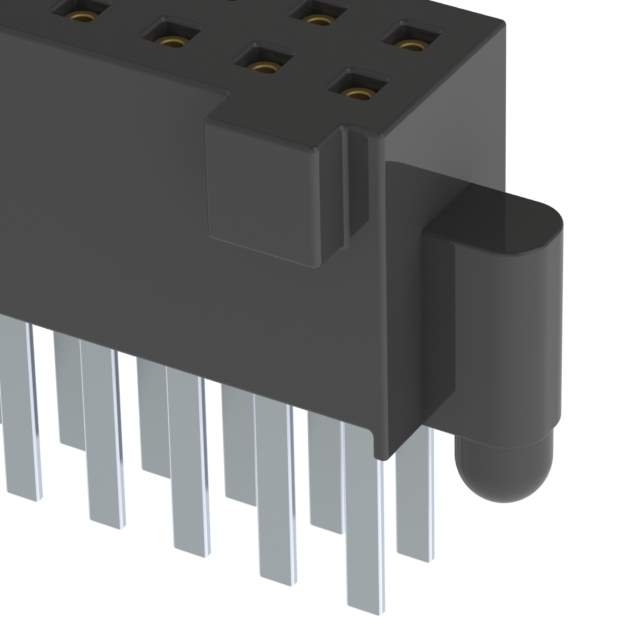

The Tiger Eye™ SFM series from Samtec Inc. offers a high-quality solution for board-to-board or cable-to-board applications.

• Connector Type: SFM-145-L1-S-D-A receptacle connector
• Number of Rows: 2
• Number of Contacts: 90 female socket contacts loaded
• Fastening Type: Push-pull
• Feature: Board guide
• Mounting: Through-hole
• Pitch (Mating): 0.050 inches (1.27mm)
• Contact Material: Beryllium copper
• Contact Finish (Mating): Gold with a thickness of 30.0µin (0.76µm)
• Contact Finish (Post): Tin
• Voltage Rating: 250VAC
• Current Rating: 3.2A per contact
• Mated Stacking Heights: 6.02mm to 11.63mm
• Insulation Material: Liquid crystal polymer (LCP)
• Insulation Color: Black
• Flammability Rating: UL94 V-0
• Operating Temperature Range: -55°C to 125°C
