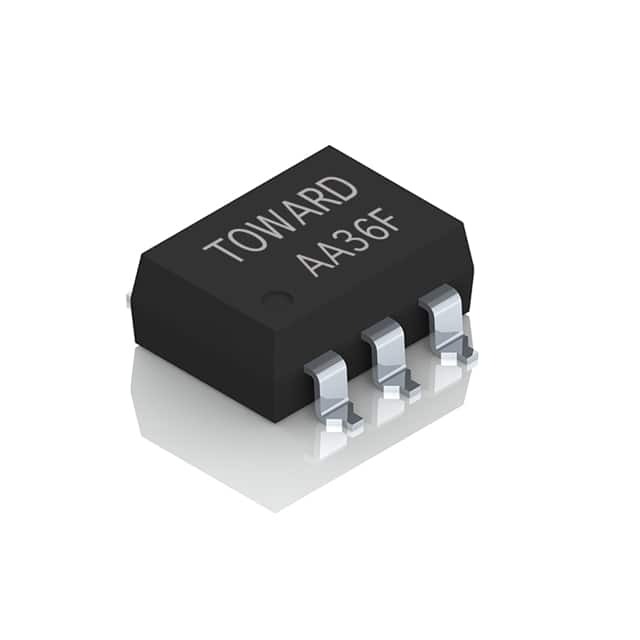

Same model may have multiple batches, images only for reference.
AA36F
Same model may have multiple batches, images only for reference.

AA36F

Part No AA36F
Manufacturer Comus International
Catalog Solid State Relays
Description SSR RELAY SPST-NO 2.5A 0-60V / Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
Datasheet
AA36F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Comus International
Series 36
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.17VDC
Voltage - Load 0 V ~ 60 V
Load Current 2.5 A
On-State Resistance (Max) 140 mOhms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMD
Base Product Number AA36
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 859126-AA36F
Ultra Librarian 3D Model Ultra Librarian AA36F CAD Model

Description

The 36 Series Solid State Relay is a high-quality electronic component manufactured by Comus International.

  • Termination Style: Gull-Wing
  • Package Type: Tube
  • Standard Package: 50 pieces
  • Output: AC or DC
  • Circuit Configuration: SPST-NO (1 Form A)
  • On-State Resistance (Maximum): 140 mOhms
  • Load Current: 2.5 A
  • Voltage Range (Load): 0 V to 60 V
  • Mounting Type: Surface Mount
  • Package: 6-SMD
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1
  • Counterfeit Chance: 53%
  • HTSUS Code: 8536.41.0030
