Same model may have multiple batches, images only for reference.

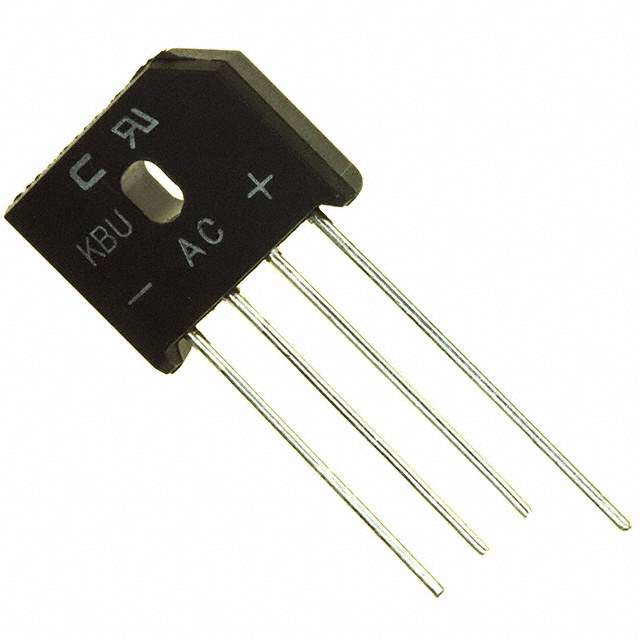

KBU1010-G Real Image
Same model may have multiple batches, images only for reference.

KBU1010-G

Part No KBU1010-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECT BRIDGE CELL 1000V 10A KBU
Datasheet
KBU1010-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Tray
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 1V @ 5A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package KBU
Win Source Part Number 1050773-KBU1010-G
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian KBU1010-G CAD Model

Description

The Comchip Technology KBU1010-G is a single-phase diode with a maximum peak reverse voltage of 1000V and an average rectified current of 10A.

  • Voltage Forward: 1V @ 5A
  • Current Reverse Leakage: 10μA @ 1000V
  • Mounting: Through-hole
  • Case/Package: KBU
  • Operating Temperature: -55°C to 150°C
  • Category: Discrete semiconductor products
  • Packaging: Trays
  • Quantity: 400
