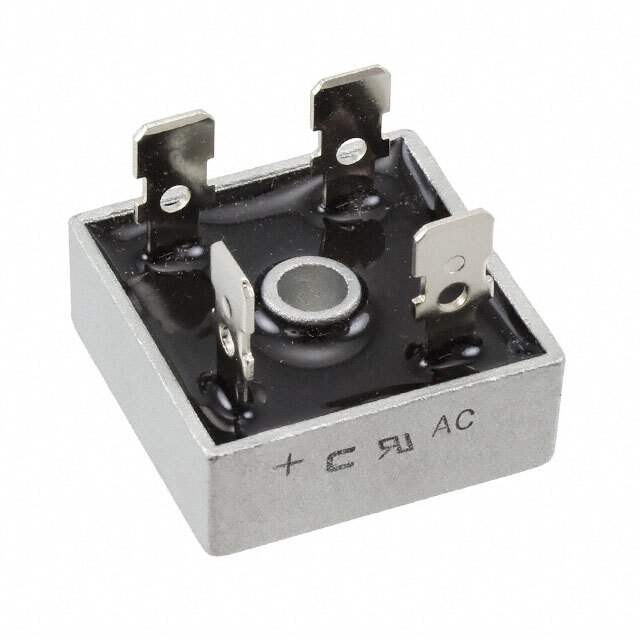

KBPC2506-G Real Image
Same model may have multiple batches, images only for reference.

KBPC2506-G

Part No KBPC2506-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 25A 600V KBPC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 12.5A
Current - Reverse Leakage @ Vr 10μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Chassis Mount
Case / Package KBPC
Win Source Part Number 002140-KBPC2506-G
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian KBPC2506-G CAD Model

Description

The Comchip Technology Standard Diode is a Single Phase electronic component, designed for use in Power Management.

  • Technology: Chassis Mount
  • Case/Package: KBPC
  • Current - Average Rectified (Io): 25A
  • Voltage - Forward (Vf) (Max) @ If: 1.1V @ 12.5A
  • Current - Reverse Leakage @ Vr: 10μA @ 600V
  • Voltage - Peak Reverse (Max): 600V
  • Popularity: medium
  • Supply and Demand Status: Limited
  • Application Field: Power Management
  • Quantity per package: 50
