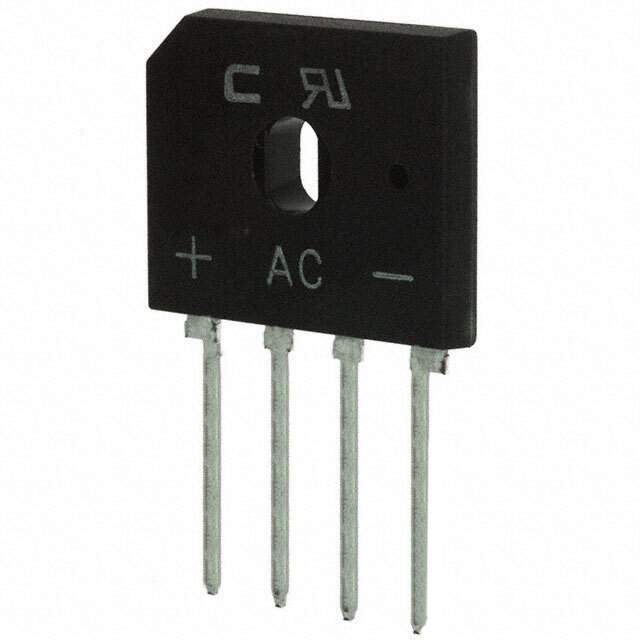

GBU2508-G Real Image
Same model may have multiple batches, images only for reference.

GBU2508-G

Part No GBU2508-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 25A 800V GBU / Diode Rectifier Bridge Single 800V 25A 4-Pin Case GBU Tube
Datasheet
GBU2508-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 4.2A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 12.5A
Current - Reverse Leakage @ Vr 10μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, GBU
Manufacturer Package GBU
Win Source Part Number 775018-GBU2508-G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Family Name GBU2508
Introduction Date July 24, 2006
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian GBU2508-G CAD Model

Description

The Comchip Technology GBU2508-G is a through-hole mounted single phase diode with a current rating of 4.2A and a voltage rating of 800V.

  • Forward voltage: 1V @ 12.5A
  • Reverse leakage current: 10μA @ 800V
  • Package: 4-SIP, GBU
  • Operating temperature range: -55°C to 150°C (TJ)
  • Quantity per package: 20
