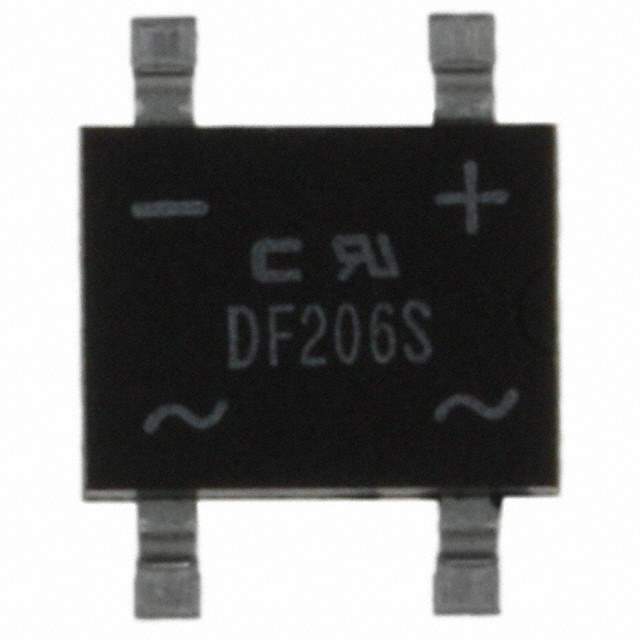

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Comchip Technology
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 2A
Current - Reverse Leakage at Vr 10μA at 600V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 4-SMD, Gull Wing
Supplier Device Package DFS
Part Number Series DF206
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801866-DF206S-G
Ultra Librarian 3D Model Ultra Librarian DF206S-G CAD Model

Description

The Comchip Technology DF206S-G is a single-phase diode from Comchip Technology.

  • Current Average Rectified: 2A
  • Peak Reverse Voltage: 600V
  • Package: 4-SMD, Gull Wing
