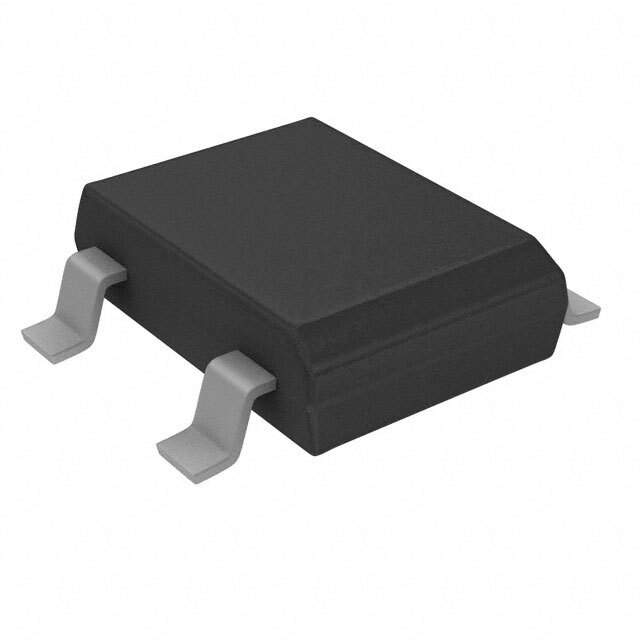

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products
Family Diodes - Bridge Rectifiers
Manufacturer Comchip Technology
Packaging Reel(TR)
Diode Type Single Phase
Voltage - Peak Reverse (Max) 100V
Current - DC Forward (If) (Max) 1A
Mounting Style SMD/SMT
Package 4-SMD, Gull Wing
Manufacturer Device Package DBS
Win Source Part Number 124454-DB102S
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian DB102S CAD Model

Description

Overview

The DB102S bridge rectifier is a compact and efficient solution for converting AC to DC power. It meets the needs of various electronic systems, ensuring smooth and reliable performance.

Features and Benefits

  • Compact design, facilitating easy integration even in tight spaces.
  • Superior surge current handling capability.
  • Excellent reliability, providing consistent performance over time.

Applications

  • Home appliances
  • Lighting systems
  • Power converters
  • Embedded systems

The DB102S remains a trusted component in applications requiring efficient power conversion.
