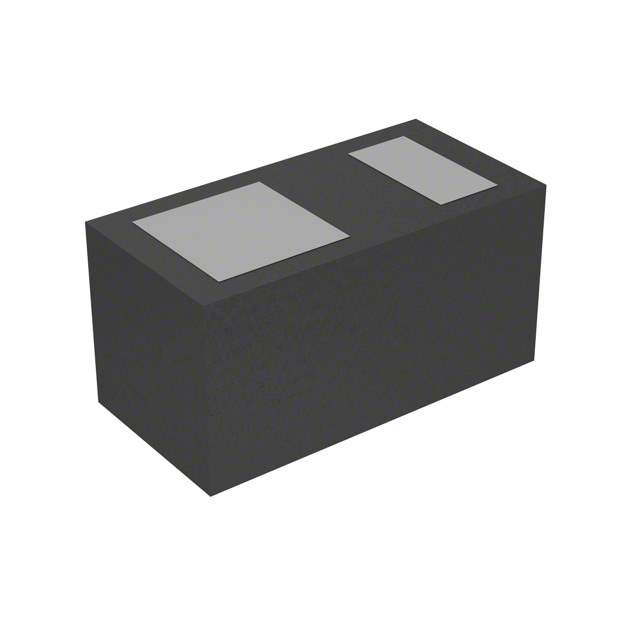

CPDZ5V0P-HF Real Image
Same model may have multiple batches, images only for reference.

CPDZ5V0P-HF

Part No CPDZ5V0P-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 20VC 0201/DFN0603
Datasheet
CPDZ5V0P-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6.5V
Max Clamping Voltage 20V
Peak Pulse Current(Ippm) 2A (8/20μs)
Power Dissipation - Pd 80W
Applications General Purpose
Capacitance @ Frequency 0.9pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0201/DFN0603
Win Source Part Number 1030131-CPDZ5V0P-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian CPDZ5V0P-HF CAD Model

Description

The CPDZ5V0P-HF is a Zener type electronic component manufactured by Comchip Technology.

  • Packaging: reel - TR
  • Mounting Style: SMD (SMT)
  • Supply and Demand Status: balanced
  • Quantity per Package: 10k pcs
  • STAND-OFF Voltage (Vwm): 5V (Max)
  • Minimum Breakdown Voltage: 6.5V
  • Max Clamping Voltage: 20V
  • Peak Pulse Current(Ippm): 2A (8/20μs)
  • Power Dissipation - Pd: 80W
