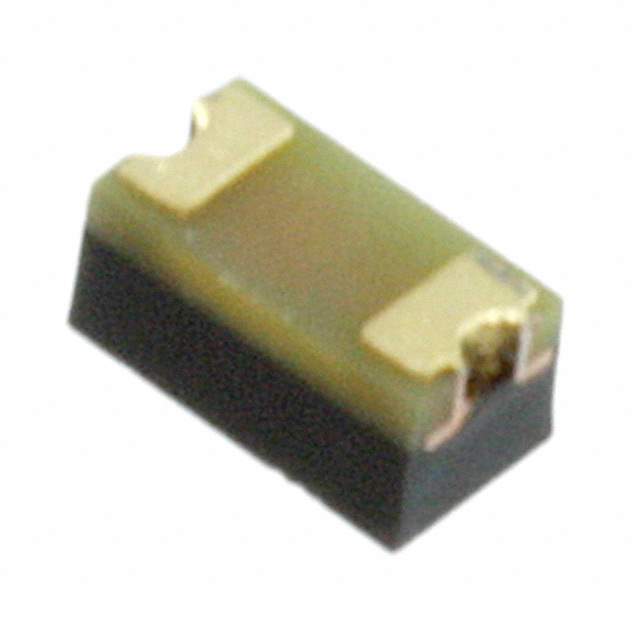

CPDU5V0U-HF Real Image
Same model may have multiple batches, images only for reference.

CPDU5V0U-HF

Part No CPDU5V0U-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC 0603
Datasheet
CPDU5V0U-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 16A (8/20μs)
Power Dissipation - Pd 200W
Applications General Purpose
Capacitance @ Frequency 90pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0603 (1608 Metric)
Win Source Part Number 1030107-CPDU5V0U-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDU5V0U-HF CAD Model

Description

The Comchip Technology CPDU5V0U-HF is a Zener diode with a stand-off voltage of 5V and a minimum breakdown voltage of 6V.

  • Stand-off Voltage: 5V
  • Minimum Breakdown Voltage: 6V
  • Capacitance: 90pF @ 1MHz
  • Max Clamping Voltage: 12.5V
  • Peak Pulse Current: 16A (8/20μs)
  • Power Dissipation: 200W
  • Package: 0603 (1608 Metric)
  • Mounting Type: SMD (SMT)
  • Common Use: Voltage regulation circuits
