Same model may have multiple batches, images only for reference.

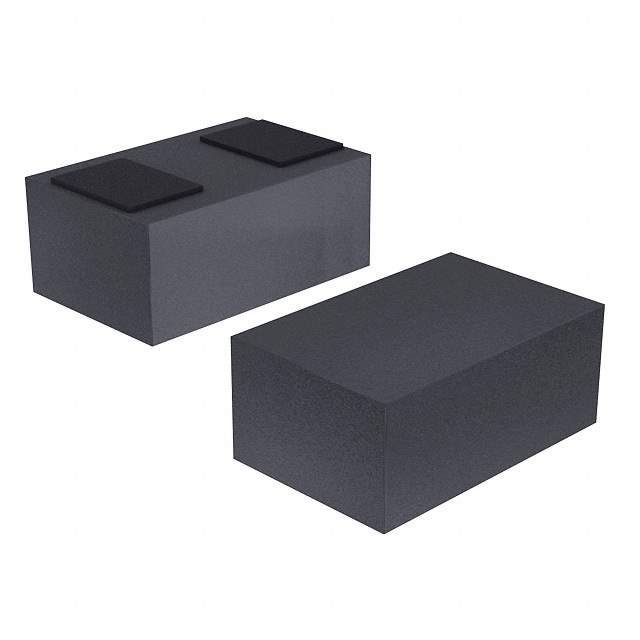

CPDQR5V0H-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQR5V0H-HF

Part No CPDQR5V0H-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 20VC SOD923F
Datasheet
CPDQR5V0H-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 5.5V
Max Clamping Voltage 20V
Peak Pulse Current(Ippm) 7A (8/20μs)
Power Dissipation - Pd 140W
Applications General Purpose
Capacitance @ Frequency 20pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Win Source Part Number 1030082-CPDQR5V0H-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQR5V0H-HF CAD Model

Description

The Comchip Technology Zener is a high-quality electronic component that is designed for general purpose applications.

  • Channels: Bidirectional
  • Capacitance: 20pF @ 1MHz
  • Applications: Circuit protection
  • Type: SMD (SMT)
  • Case/Package: 0402/SOD-923F
  • STAND-OFF Voltage (Vwm): 5V
  • Breakdown Voltage (Min): 5.5V
  • Clamping Voltage (Max): 20V
  • Peak Pulse Current (Ippm): 7A (8/20μs)
  • Power Dissipation - Pd: 140W
  • Packaging: Reel
  • Popularity: Medium
  • Supply and Demand: Balance
  • Quantity per Package: 5k pcs
