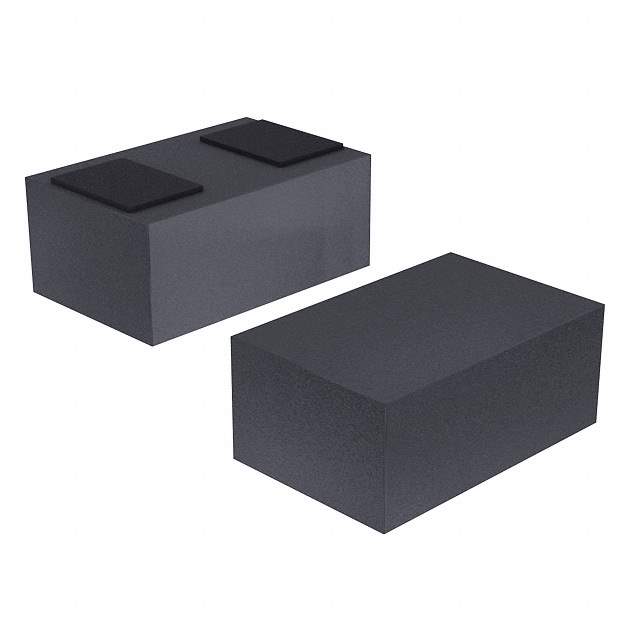

CPDQR24V-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQR24V-HF

Part No CPDQR24V-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 24VWM 47VC 0402
Datasheet
CPDQR24V-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 24V
Minimum Breakdown Voltage 25V
Max Clamping Voltage 47V
Peak Pulse Current(Ippm) 1A (8/20μs)
Power Dissipation - Pd 47W
Applications General Purpose
Capacitance @ Frequency 10pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Win Source Part Number 1030077-CPDQR24V-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQR24V-HF CAD Model

Description

The CPDQR24V-HF is a Zener diode manufactured by Comchip Technology.

  • Channel Type: bidirectional channel type
  • Capacitance: 10pF @ 1MHz
  • Application: general-purpose applications
  • Packaging: SMD (SMT) 0402/SOD-923F
  • Stand-off Voltage (Vwm): 24V
  • Minimum Breakdown Voltage: 25V
  • Maximum Clamping Voltage: 47V
  • Peak Pulse Current(Ippm): 1A (8/20μs)
  • Power Dissipation - Pd: 47W
  • Packaging: reel - TR
  • Package Quantity: 5k pcs per package
