Same model may have multiple batches, images only for reference.

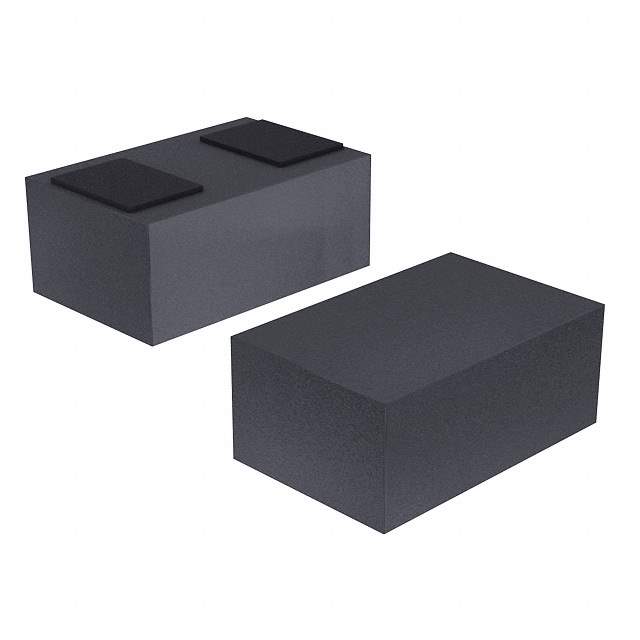

CPDQR12V-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQR12V-HF

Part No CPDQR12V-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 12VWM 25VC 0402
Datasheet
CPDQR12V-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 13V
Max Clamping Voltage 25V
Peak Pulse Current(Ippm) 1A (8/20μs)
Power Dissipation - Pd 25W
Applications General Purpose
Capacitance @ Frequency 12pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0402 (1005 Metric)
Win Source Part Number 1030075-CPDQR12V-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQR12V-HF CAD Model

Description

The CPDQR12V-HF electronic component from Comchip Technology is a zener type component that is ideal for general-purpose applications. Comchip Technology

  • Mounting Technology: SMD (SMT)
  • Case/Package: 0402 (1005 Metric)
  • STAND-OFF Voltage (Vwm): 12V
  • Minimum Breakdown Voltage: 13V
  • Maximum Clamping Voltage: 25V
  • Peak Pulse Current(Ippm): 1A (8/20μs)
  • Supply and Demand Status: balance
  • Packaging: reel - TR
  • Quantity per Package: 5k pcs
