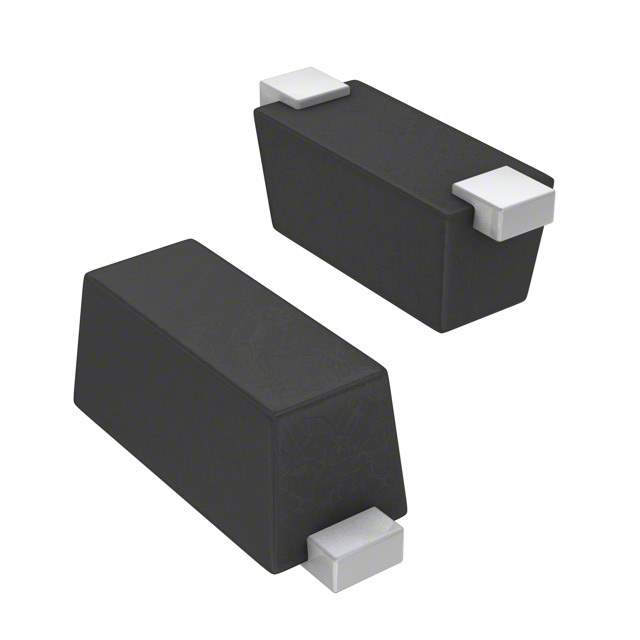

CPDQ12V0U-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQ12V0U-HF

Part No CPDQ12V0U-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 12VWM 23.7VC SOD923F
Datasheet
CPDQ12V0U-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 13.5V
Max Clamping Voltage 23.7V
Peak Pulse Current(Ippm) 5.9A (8/20μs)
Power Dissipation - Pd 140W
Applications General Purpose
Capacitance @ Frequency 30pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Win Source Part Number 1030058-CPDQ12V0U-HF
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Consumer Electronics, Portable Devices, Audio, Industrial
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQ12V0U-HF CAD Model

Description

The Comchip Technology 1030058-CPDQ12V0U-HF is a zener type diode that comes in a 0402/SOD-923F package.

  • STAND-OFF Voltage (Vwm): 12V
  • Minimum Breakdown Voltage: 13.5V
  • Max Clamping Voltage: 23.7V
  • Peak Pulse Current (Ippm): 5.9A (8/20μs)
  • Power Dissipation - Pd: 140W
  • Category: Circuit Protection
  • Applications: consumer electronics, portable devices, audio, and industrial
  • Supply and Demand Status: sufficient
  • Package Size: 8k pieces
