Same model may have multiple batches, images only for reference.

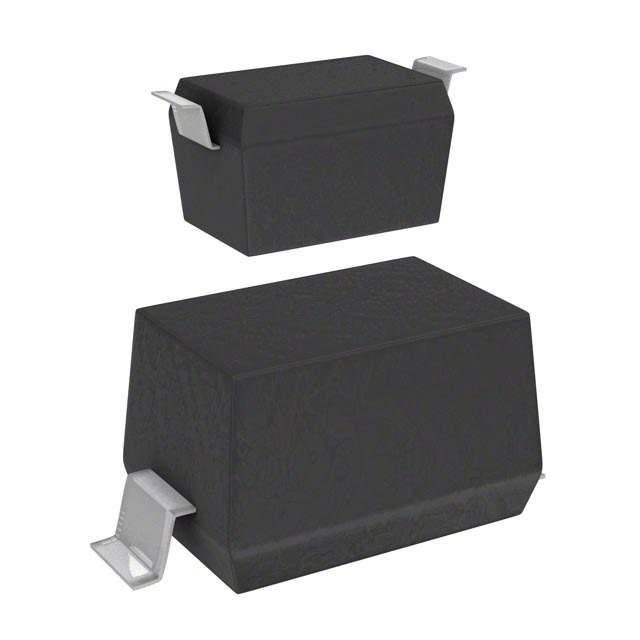

CPDH3V3UP Real Image
Same model may have multiple batches, images only for reference.

CPDH3V3UP

Part No CPDH3V3UP
Manufacturer Comchip Technology
Catalog TVS - Diodes
Datasheet
CPDH3V3UP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Comchip Technology
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Clamping (Max) @ Ipp 8V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 40W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 12pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case SC-79, SOD-523
Supplier Device Package SOD-523
Base Product Number CPDH3V3
Other Names 641-1395-2,641-1395-1,641-1395-2-CD,Q7924351,Q6300358,641-1395-6
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1301114-CPDH3V3UP
Ultra Librarian 3D Model Ultra Librarian CPDH3V3UP CAD Model

Description

The CPDH3V3UP is a unidirectional Zener diode that is designed to protect electronic circuits from overvoltage transients.

  • Voltage - Breakdown: 3.3V
  • Voltage - Clamping: 8V @ a peak pulse power of 40W
  • Capacitance: 12pF @ 1MHz
  • Current - Peak Pulse: 5A @ 8/20µs
  • Mounting Style: SMD (SMT)
  • Package: SC-79, SOD-523
  • Application: General Purpose
  • Operating Temperature: -55°C to 125°C (TJ)
  • REACH: Unaffected
  • Packaging: Tape and Reel (3,000 units)
  • ECCN: EAR99
