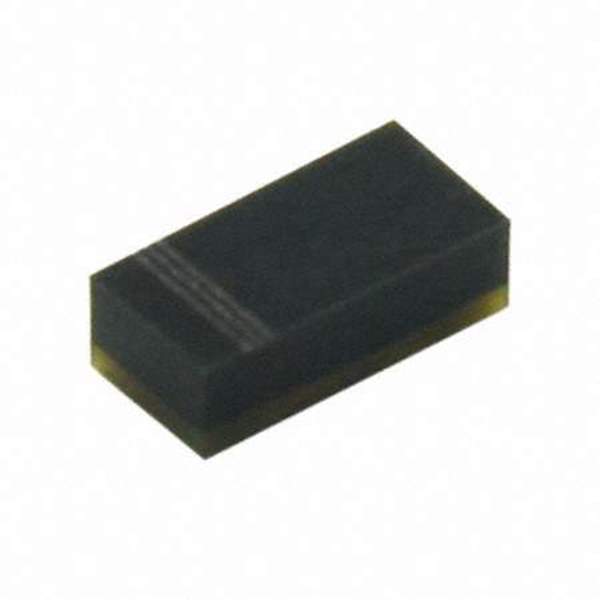

CPDFR5V0R-HF Real Image
Same model may have multiple batches, images only for reference.

CPDFR5V0R-HF

Part No CPDFR5V0R-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 14VC 1005/SOD323
Datasheet
CPDFR5V0R-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 5.6V
Max Clamping Voltage 14V
Peak Pulse Current(Ippm) 11A (8/20μs)
Power Dissipation - Pd 150W
Applications General Purpose
Capacitance @ Frequency 20pF @ 1MHz
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 1005/SOD-323F
Win Source Part Number 1030052-CPDFR5V0R-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDFR5V0R-HF CAD Model

Description

The Comchip Technology 1030052-CPDFR5V0R-HF is a zener diode that has a minimum breakdown voltage of 5.6V and a maximum clamping voltage of 14V.

  • Minimum breakdown voltage: 5.6V
  • Maximum clamping voltage: 14V
  • Channel: bidirectional channel
  • Stand-off voltage: 5V (Max)
  • Designed for: use in circuit protection
  • Package: 1005/SOD-323F
  • Peak pulse current: 11A (8/20μs)
  • Power dissipation: 150W
  • Supply and demand status: balanced
  • Package: 4k pcs per package
