Same model may have multiple batches, images only for reference.

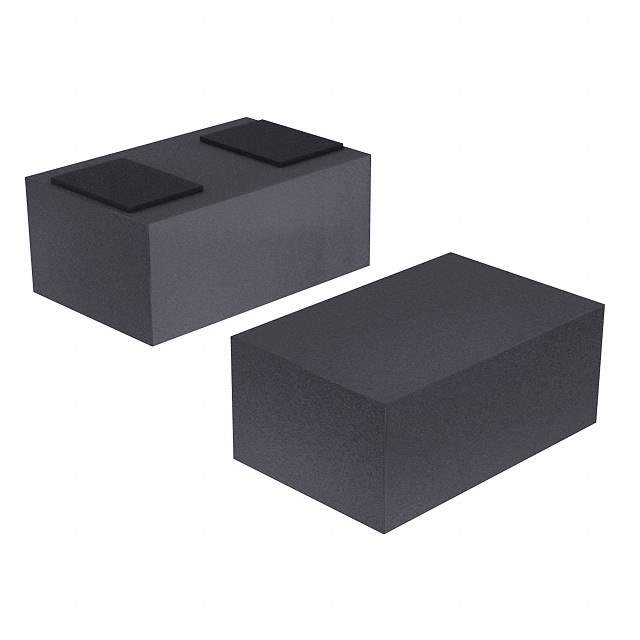

CPDER5V0U-HF Real Image
Same model may have multiple batches, images only for reference.

CPDER5V0U-HF

Part No CPDER5V0U-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC 0503
Datasheet
CPDER5V0U-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 16A (8/20μs)
Power Dissipation - Pd 200W
Applications General Purpose
Capacitance @ Frequency 90pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0503/SOD-723F
Win Source Part Number 1030039-CPDER5V0U-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDER5V0U-HF CAD Model

Description

The Zener 1030039-CPDER5V0U-HF is a general-purpose circuit protection device manufactured by Comchip Technology.

  • Mounting Type: SMD (SMT)
  • Package: 0503/SOD-723F
  • STAND-OFF Voltage (Vwm): 5V
  • Breakdown Voltage: 6V (minimum)
  • Clamping Voltage: 12.5V (maximum)
  • Peak Pulse Current (Ippm): 16A (8/20μs)
  • Power Dissipation - Pd: 200W
  • Capacitance: 90pF @ 1MHz
  • Packaging: reel (4k pcs)
