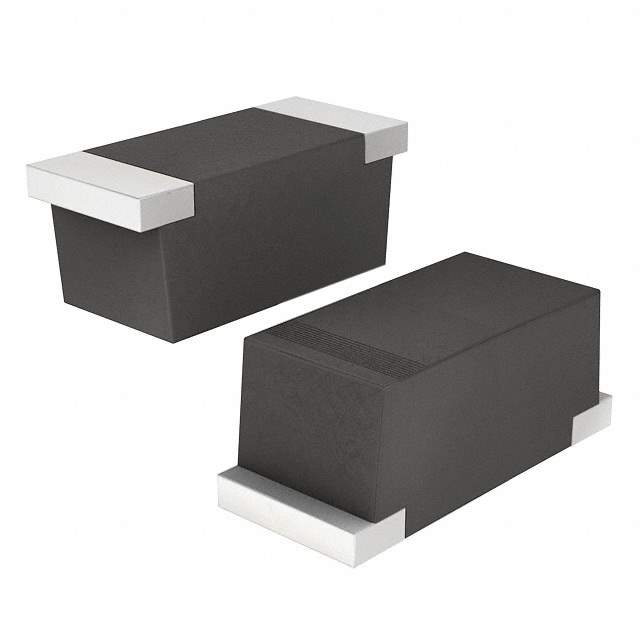

The CGRM4005-HF is a rectifier diode manufactured by Comchip Technology. Rectifier diodes are semiconductor devices used to convert alternating current (AC) to direct current (DC). They are essential components in power supplies and various electronic circuits.

Applications

• AC-DC Power Supplies: Used in the rectification stage to convert AC voltage from the mains to DC voltage for powering electronic devices.
• Battery Chargers: Employed in battery charging circuits to ensure current flows in one direction.
• Adapters: Used in AC adapters for converting AC voltage to DC voltage.
• Voltage Multipliers: Used in voltage multiplier circuits to increase the DC voltage.
• General Rectification: Suitable for various rectification applications in electronic circuits.

Features

• High Forward Current: The diode is designed to handle a forward current of 4.0A.
• High Surge Current Capability: It can withstand a surge current up to 50A.
• Low Forward Voltage Drop: Exhibits a low forward voltage drop, minimizing power loss.
• High Reliability: Designed for robust performance and long operational life.
• Lead-Free Finish / RoHS Compliant: Compliant with RoHS directives and features a lead-free finish.

Benefits

• Efficient Rectification: Converts AC to DC with minimal power loss.
• Reliable Performance: Provides stable and dependable operation in various applications.
• High Surge Protection: Protects against voltage spikes and surges.
• Environmental Compliance: RoHS compliant and lead-free.

Additional Details

The CGRM4005-HF has a reverse voltage rating of 50V. It is typically packaged in a DO-27 package. It's designed for through-hole mounting. The operating junction temperature range is -55°C to +150°C. The low forward voltage drop helps to improve the efficiency of power supplies and reduce heat generation. It's suitable for use in power supplies for consumer electronics, industrial equipment, and automotive systems. The high surge current capability allows it to withstand transient voltage spikes, improving overall circuit reliability.

Please note that the product is listed as END-OF-LIFE. This means that it is no longer actively manufactured and may be difficult to source. Consider looking for alternative rectifier diodes from other manufacturers.
