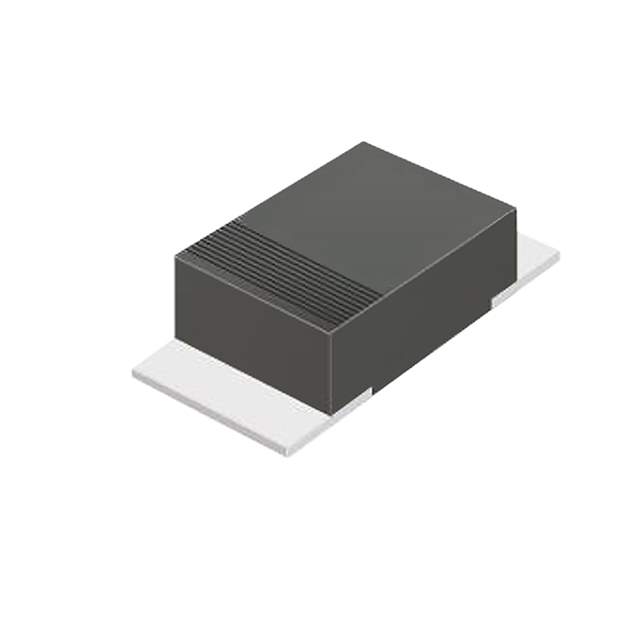

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 7 Weeks
Features Diode Standard 1000 V 1A Surface Mount SOD-123F
Manufacturer Comchip Technology
Package Reel - TR
Speed Standard Recovery >500ns, > 200mA (Io)
Mounting Surface Mount
Package SOD-123F
Case / Package SOD-123F
Family Name CGRKM4007
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 641-1514-1, 641-1514-2, 641-1514-6
Quantity per package 2500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866384-CGRKM4007-HF
Ultra Librarian 3D Model Ultra Librarian CGRKM4007-HF CAD Model

Description

The Comchip Technology diode is a high-quality electronic component used in a variety of applications. With a maximum forward voltage of 1.1V at 25A and a reverse leakage current of 10μA at 1000V, this diode is designed for high performance. It has a peak reverse voltage of 1000V and is mounted on a surface mount. The Comchip Technology diode is suitable for use in a wide range of applications, including discrete semiconductor products. It has a standard recovery speed of >500ns and is available in a SOD-123F package. This diode is popular in the market and has limited supply and demand status.
