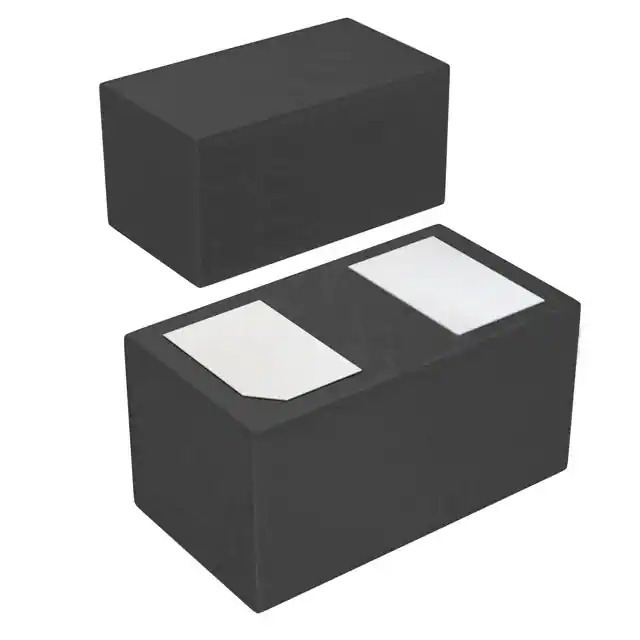

CDSZ01100-HF Comchip Technology
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Series -
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 500 nA @ 80 V
Capacitance @ Vr, F 3pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201 (0603 Metric)
Operating Temperature - Junction -40°C ~ 150°C
Base Product Number CDSZ01100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1367311-CDSZ01100-HF
Ultra Librarian 3D Model Ultra Librarian CDSZ01100-HF CAD Model

Description

The CDSZ01100-HF is a single diode rectifier from Comchip Technology.

  • Diode Type: Rectifier
  • Mounting Type: Surface Mount
  • Maximum DC Reverse Voltage: 80V
  • Average Rectified Current: 100mA
  • Forward Voltage: 1.2V @ 100mA
  • Small Signal Speed: Less than 200mA
  • Reverse Recovery Time: 4ns
  • Current Leakage: 500nA
  • Capacitance: 3pF @ 0V and 1MHz
  • Operating Temperature: -40°C to 150°C
  • Package: 0201 (0603 Metric)
