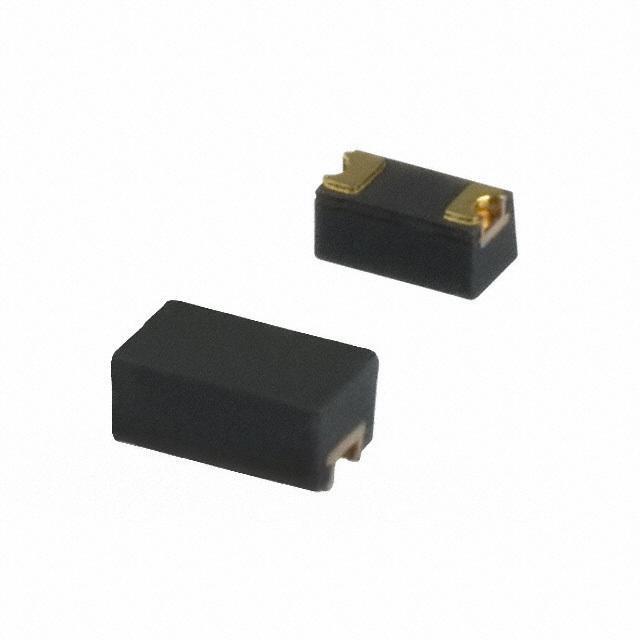

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 75V
Current - Average Rectified (Io) 150mA
Voltage - Forward (Vf) (Maximum) @ If 1V @ 50mA
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 2.5μA @ 75V
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Mounting SMD
Package 2-SMD, No Lead
Manufacturer Package 0603/SOD-523F
Operating Temperature - Junction -40°C ~ 125°C
Win Source Part Number 1160940-CDSU4148-HF
Manufacturer Homepage www.comchiptech.com
Family Name CDSU4148
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CDSU4148-HF CAD Model

Description

The CDSU4148-HF is a standard diode type manufactured by Comchip Technology.

  • Component Type: Standard Diode
  • Supply and Demand Status: Balanced
  • Voltage-Forward (Vf): 1V @ 50mA
  • Voltage-DC Reverse (Vr): 75V
  • Operating Temperature: -40℃ ~ 125℃
  • Compliance: Halogen-free
  • Quantity per Package: 4k pcs
