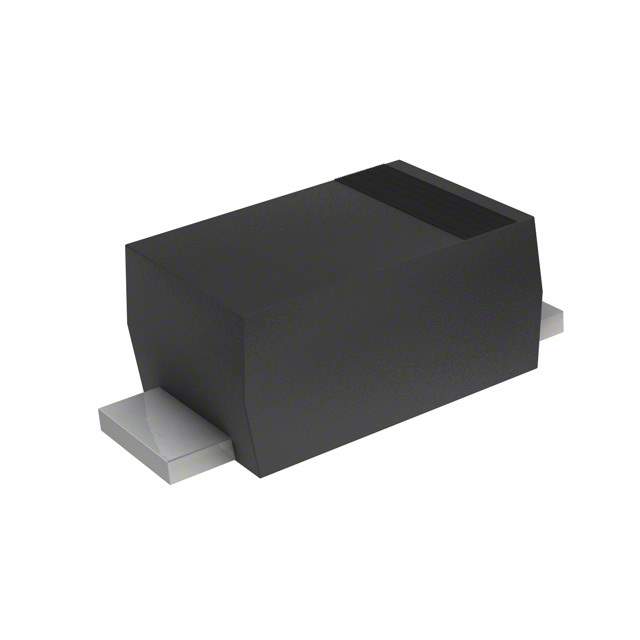

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 385mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 250μA @ 20V
Mounting SMD (SMT)
Case / Package SOD-123
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 012970-CDBW0520L-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian CDBW0520L-G CAD Model

Description

Product Overview

The CDBW0520L-G is a Schottky Barrier Diode designed for high efficiency and low forward voltage drop. This component is ideal for applications requiring reliable performance in switching and rectification tasks.

Features and Benefits

  • Low forward voltage drop for increased efficiency.
  • High surge current capability.
  • Surface mount device for compact designs.
  • RoHS compliant, ensuring long-term environmental friendliness.

Applications

  • Power supply management.
  • Reverse polarity protection.
  • DC-DC converters.
  • Battery-powered devices.

Additional Details

This diode comes in a SOD-323 package, making it suitable for high-density circuit boards where space is a constraint. The low profile packaging offers advantages in height-restricted designs.
