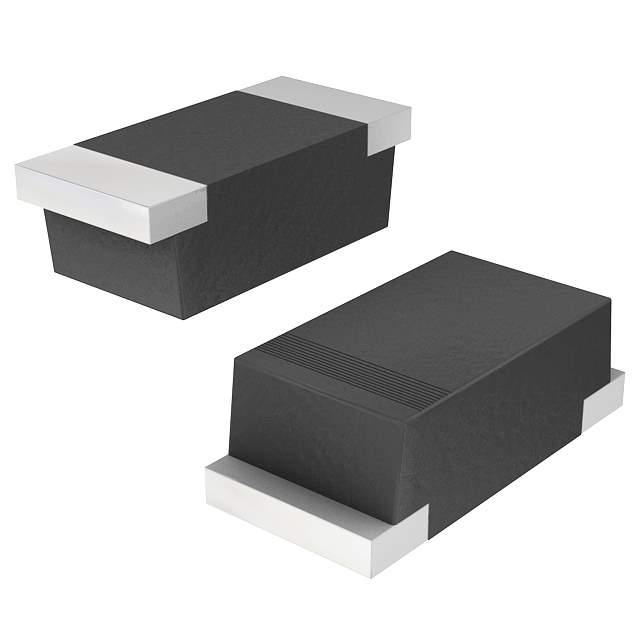

CDBMT240L-HF Real Image
Same model may have multiple batches, images only for reference.

CDBMT240L-HF

Part No CDBMT240L-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 2A SOD123H / Diode Schottky 40 V 2A Surface Mount SOD-123H
Datasheet
CDBMT240L-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Comchip Technology
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 400 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 40 V
Capacitance @ Vr, F 160pF @ 4V, 1MHz
Mounting Surface Mount
Case / Package SOD-123H
Supplier Device Package SOD-123H
Operating Temperature - Junction -55°C ~ 100°C
Base Product Number CDBMT240
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 3,000
Win Source Part Number 1324039-CDBMT240L-HF
Ultra Librarian 3D Model Ultra Librarian CDBMT240L-HF CAD Model

Description

The Comchip Technology 1324039-CDBMT240L-HF is a Schottky diode that is designed for rectifier applications.

  • Maximum DC Reverse Voltage: 40 V
  • Average Rectified Current: 2A
  • Forward Voltage: 400 mV @ 2 A
  • Reverse Leakage Current: 1 mA @ 40 V
  • Capacitance: 160pF @ 4V and 1MHz
  • Operating Temperature Range: -55°C to 100°C
  • Case/Package: SOD-123H
  • Mounting: Surface-Mount
  • ROHS3 Compliant: Yes
