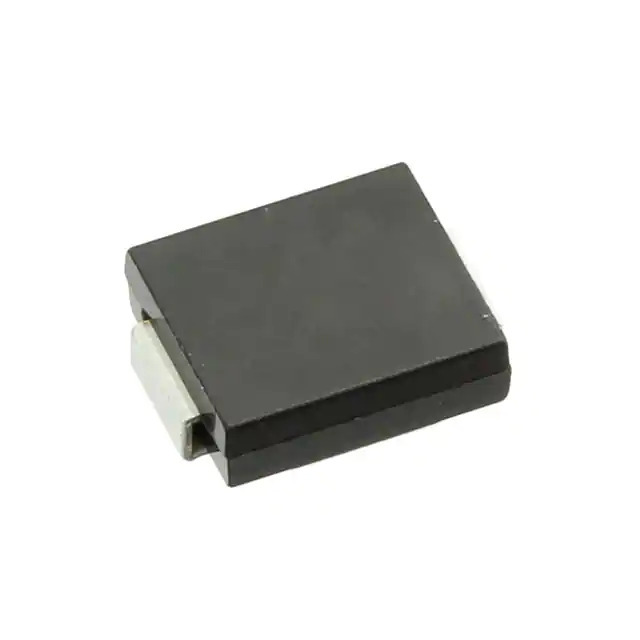

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Series -
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 900 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 200 V
Capacitance @ Vr, F 380pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Operating Temperature - Junction -50°C ~ 175°C
Base Product Number CDBC5200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367222-CDBC5200-HF
Ultra Librarian 3D Model Ultra Librarian CDBC5200-HF CAD Model

Description

The CDBC5200-HF is a single Schottky rectifier diode from Comchip Technology.

  • Type: Schottky Rectifier Diode
  • Mounting Type: Surface Mount
  • Series: CDBC5200
  • Maximum Reverse Voltage: 200V
  • Average Rectified Current: 5A
  • Forward Voltage: 900 mV @ 5A
  • Recovery Time: Less than 500ns
  • Package: DO-214AB, SMC
  • Packaging: Tape and Reel
  • Operating Temperature: -50°C to 175°C
  • HTSUS: 8541.10.0080
  • ECCN: EAR99
