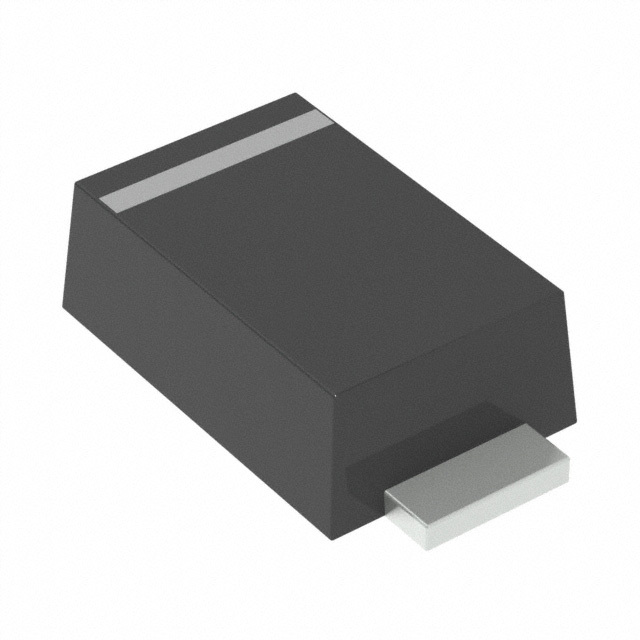

ACGRTS4005-HF Comchip Technology
Same model may have multiple batches, images only for reference.

ACGRTS4005-HF

Part No ACGRTS4005-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE GP 600V 1A TS/SOD123FL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Capacitance @ Vr, F 6pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package TS/SOD-123FL
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number ACGRTS4005
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368256-ACGRTS4005-HF
Ultra Librarian 3D Model Ultra Librarian ACGRTS4005-HF CAD Model

Description

The ACGRTS4005-HF is a single diode rectifier from Comchip Technology.

  • Product Category: Discrete Semiconductor Products
  • Automotive: Automotive
  • Voltage - Reverse (Max): Up to 600V
  • MSL: Level 1 (Unlimited)
  • Packaging: Tape & Reel (TR)
  • Mounting Type: Surface Mount
  • Package / Case: SOD-123F
  • Current - Average Rectified (Io): 1A
  • Voltage - Forward (Vf) (Max) @ If: 1V @ 1A
  • Recovery Type: Standard Recovery
