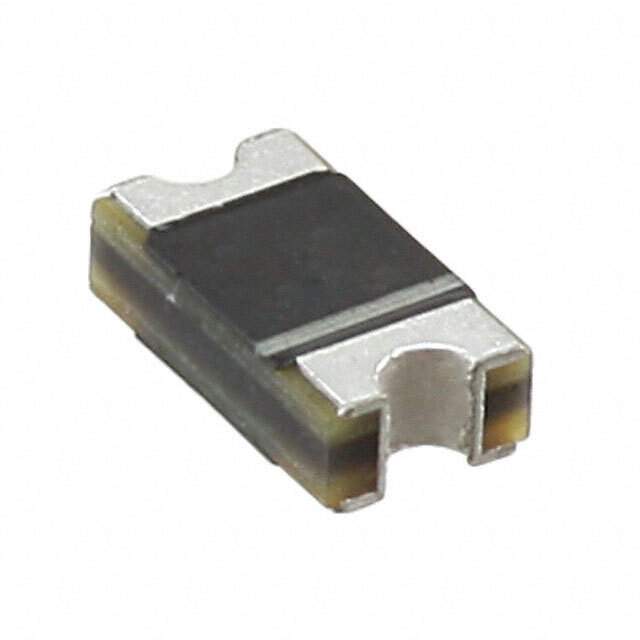

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Comchip Technology
Packaging Reel - TR
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Capacitance @ Vr, F 10pF @ 4V, 1MHz
Mounting Surface Mount
Case / Package 2-SMD, No Lead
Supplier Device Package 1206
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number ACEFN103
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 641-1625-1,641-1625-2,641-1625-6
Standard Package 3,000
Win Source Part Number 1325711-ACEFN103-HF
Ultra Librarian 3D Model Ultra Librarian ACEFN103-HF CAD Model

Description

The Comchip Technology ACEFN103-HF is a fast recovery diode with a packaging of reel-TR and a standard package of 3,000.

  • Packaging: reel-TR
  • Standard Package: 3,000
  • Mounting: Surface mount
  • Case/Package: 2-SMD, No Lead
  • Voltage DC Reverse (Vr) (Max): 600V
  • Current Average Rectified (Io): 1A
  • Voltage Forward (Vf) (Max) @ If: 1.7V @ 1A
  • Reverse Recovery Time (trr): 35ns
  • Current Reverse Leakage @ Vr: 5μA @ 600V
  • Capacitance @ Vr, F: 10pF @ 4V, 1MHz
  • Operating Temperature - Junction: -65°C to 175°C
  • Supplier Device Package: 1206
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
  • Other Part Numbers: 641-1625-1,641-1625-2,641-1625-6
  • Base Product Number: ACEFN103
  • ROHS3: Compliant
