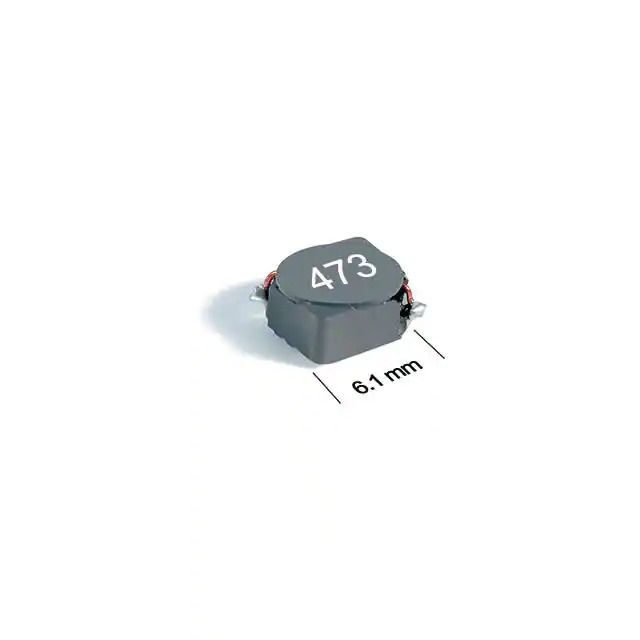

Same model may have multiple batches, images only for reference.

MSS6132-563MLC

Name: MSS6132-563MLC
Brand: Coilcraft
SKU: 1379255
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MSS6132-563MLC
Manufacturer	Coilcraft
Catalog	Fixed Inductors
Description	POWER INDUCTOR, SHIELDED, 20% TO
Datasheet	MSS6132-563MLC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Coilcraft
Series	MSS6132
Package	Strip
Product Status	Active
Type	Drum Core
Material - Core	Ferrite
Inductance	56 µH
Tolerance	±20%
Current Rating (Amps)	850 mA
Current - Saturation (Isat)	610mA
Shielding	Shielded
DC Resistance (DCR)	380mOhm Max
Q @ Freq	-
Frequency - Self Resonant	14MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.240" L x 0.240" W (6.10mm x 6.10mm)
Height - Seated (Max)	0.126" (3.20mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
Win Source Part Number	1379255-MSS6132-563MLC
Ultra Librarian 3D Model	Ultra Librarian MSS6132-563MLC CAD Model

Alternative Products

Description

The MSS6132-563MLC is a fixed inductor from Coilcraft.

Temperature Range: -40°C to 125°C
Power Rating: 300mW
Package Size: 0.240" L x 0.240" W (6.10mm x 6.10mm)
Seated Height: 0.126" (3.20mm)
Mounting Type: Surface Mount
Inductance: 56µH
Current Rating: 850mA
Series: MSS6132
Status: Active
REACH: Unaffected
ECCN: EAR99
