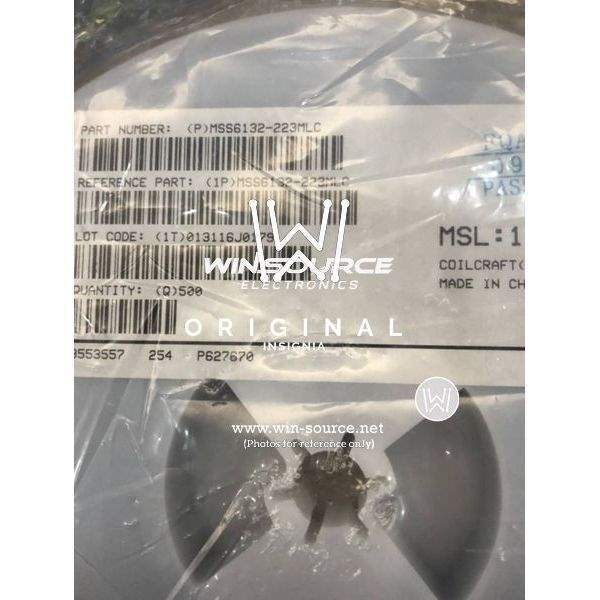

MSS6132-223MLC Coilcraft MSS6132-223MLC Real Image MSS6132-223MLC label picture
Same model may have multiple batches, images only for reference.
MSS6132-223MLC Coilcraft MSS6132-223MLC Real Image MSS6132-223MLC label picture
MSS6132-223MLC Coilcraft MSS6132-223MLC Real Image MSS6132-223MLC label picture
Same model may have multiple batches, images only for reference.

MSS6132-223MLC

Part No MSS6132-223MLC
Manufacturer Coilcraft
Catalog Fixed Inductors
Description POWER INDUCTOR, SHIELDED, 20% TO
Datasheet
MSS6132-223MLC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr COILCRAFT
Series MSS6132
Package Strip
Product Status Active
Type Drum Core
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 1.45 A
Current - Saturation (Isat) 970mA
Shielding Shielded
DC Resistance (DCR) 158mOhm Max
Frequency - Self Resonant 21MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.240" L x 0.240" W (6.10mm x 6.10mm)
Height - Seated (Max) 0.126" (3.20mm)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Win Source Part Number 243740-MSS6132-223MLC
Ultra Librarian 3D Model Ultra Librarian MSS6132-223MLC CAD Model

Description

The MSS6132-223MLC is a strip package shielded fixed inductor from Coilcraft.

  • Series: MSS6132
  • Size: 0.240" L x 0.240" W (6.10mm x 6.10mm)
  • Inductance: 22 µH
  • Tolerance: ±20%
  • Seated Height: 0.126" (3.20mm)
  • DC Resistance (DCR): 158mOhm
  • Mounting: Surface mount
  • Temperature Range: -40°C to 125°C
  • AEC-Q200 Rated: Yes
  • Current Rating: 1.45A
  • Frequency Self-Resonant: 21MHz
  • Core Material: Ferrite
  • Design: Shielded
  • Status: Active
