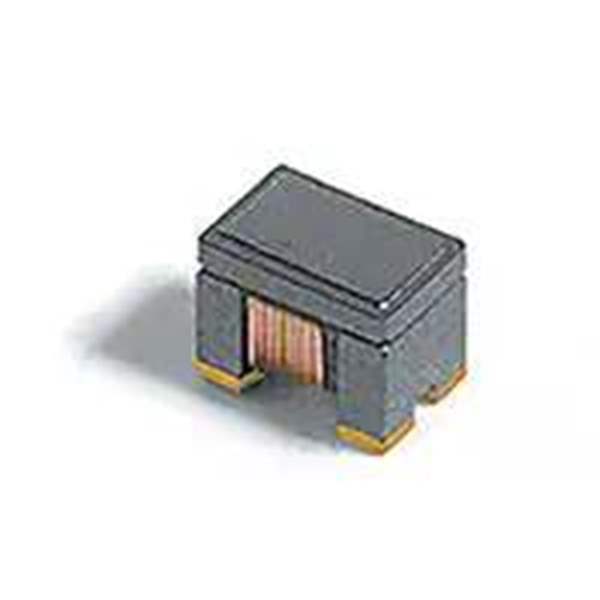

0805USB-902MLC Real Image
Same model may have multiple batches, images only for reference.

0805USB-902MLC

Part No 0805USB-902MLC
Manufacturer Coilcraft
Catalog Common Mode Chokes
Description CMC 413NH 400MA 2LN 2.06KOHM SMD
Datasheet
0805USB-902MLC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr COILCRAFT
Series 0805USB
Package Strip
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 2.06 kOhms @ 810 MHz
Inductance @ Frequency 413 nH @ 100 MHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 650mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height (Max) 0.065" (1.65mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 2361-0805USB-902MLC
Ultra Librarian 3D Model Ultra Librarian 0805USB-902MLC CAD Model

Description

Features and Benefits

  • Compact 0805 size for high-density circuit board applications
  • High insulation resistance ensuring reliable performance
  • Suitable for both DC and AC applications

Applications

  • Power management systems
  • Consumer electronics
  • Automotive circuit designs

The 0805USB-902MLC is a versatile electronic component ideal for a variety of applications owing to its compact size and robust design. Its high insulation resistance makes it favorable for devices requiring stable and dependable operation.
