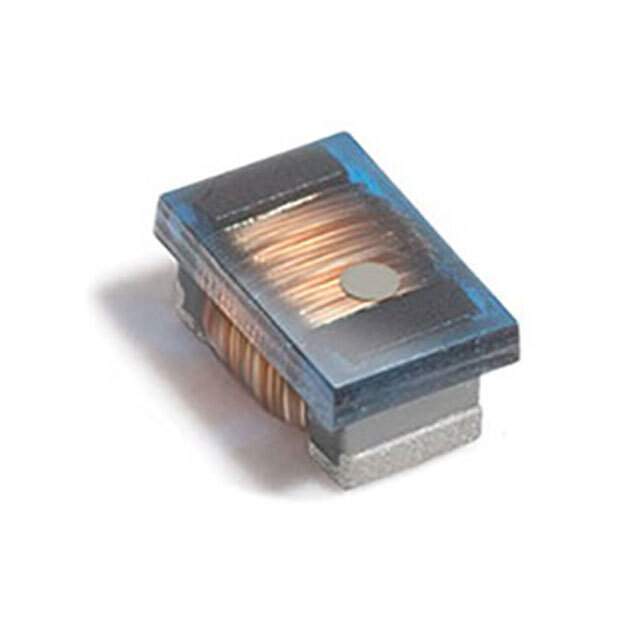

0603AF-821XJRW Real Image
Same model may have multiple batches, images only for reference.

0603AF-821XJRW

Part No 0603AF-821XJRW
Manufacturer Coilcraft
Catalog Fixed Inductors
Description FIXED IND 820NH 420MA 580MOHM SM / 820 nH Unshielded Inductor 420 mA 580mOhm Max 0603 (1608 Metric)
Datasheet
0603AF-821XJRW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr COILCRAFT
Series 0603AF
Package Strip
Material - Core Ferrite
Inductance 820 nH
Tolerance ±5%
Current Rating (Amps) 420 mA
Shielding Unshielded
DC Resistance (DCR) 580mOhm Max
Q @ Freq 16 @ 7.9MHz
Frequency - Self Resonant 325MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 7.9 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max) 0.036" (0.91mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 2457-0603AF-821XJE_,2457-0603AF-821XJRW,2457-0603AF-821XJEW,2457-0603AF-821XJE_-ND,2457-0603AF-821XJE_TR-ND
Standard Package 1
Win Source Part Number 960441-0603AF-821XJRW
Ultra Librarian 3D Model Ultra Librarian 0603AF-821XJRW CAD Model
