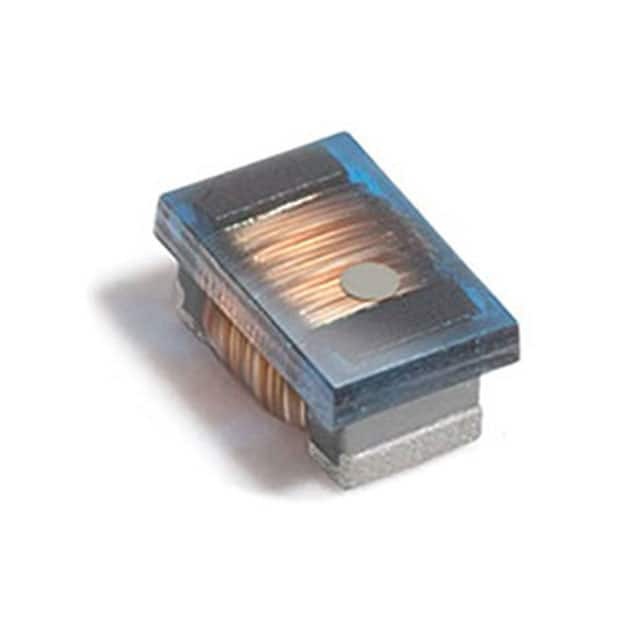

0603AF-471XJRW Coilcraft
Same model may have multiple batches, images only for reference.

0603AF-471XJRW

Part No 0603AF-471XJRW
Manufacturer Coilcraft
Catalog Fixed Inductors
Description FIXED IND 470NH 610MA 370MOHM SM / 470 nH Unshielded Inductor 610 mA 370mOhm Max 0603 (1608 Metric)
Datasheet
0603AF-471XJRW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr COILCRAFT
Series 0603AF
Package Strip
Material - Core Ferrite
Inductance 470 nH
Tolerance ±5%
Current Rating (Amps) 610 mA
Shielding Unshielded
DC Resistance (DCR) 370mOhm Max
Q @ Freq 15 @ 7.9MHz
Frequency - Self Resonant 575MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 7.9 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max) 0.036" (0.91mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 2457-0603AF-471XJRW,2457-0603AF-471XJEW,2457-0603AF-471XJE_-ND,2457-0603AF-471XJE_TR-ND,2457-0603AF-471XJE_
Standard Package 1
Win Source Part Number 1107567-0603AF-471XJRW
Ultra Librarian 3D Model Ultra Librarian 0603AF-471XJRW CAD Model

Description

The 0603AF-471XJRW fixed inductor from Coilcraft is a surface mount inductor with a standard package of 1.

  • Inductance: 470 nH
  • Tolerance: ±5%
  • Temperature Range: -40°C to 85°C
  • Height: 0.036" (0.91mm)
  • Core Material: Ferrite
  • Q @ Freq: 15 @ 7.9MHz
  • Frequency of Self-Resonant: 575MHz
  • DC Resistance (DCR): 370mOhm Max
  • Packaging: Strip
  • Dimension: 0.071" L x 0.044" W (1.80mm x 1.12mm)
