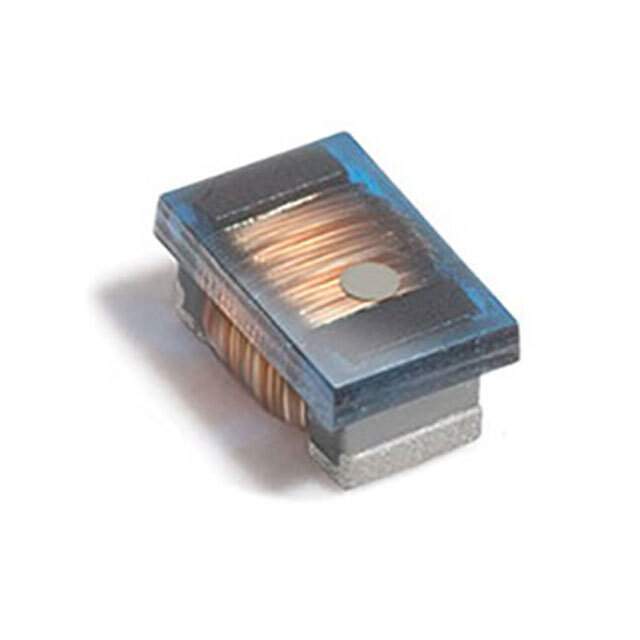

The Coilcraft 0603AF-222XJR is a surface mount fixed inductor designed for various RF and high-frequency applications. It's characterized by its compact size, high Q factor, and excellent self-resonant frequency.

Applications:

• RF Filters: Used in RF filters to selectively pass or reject specific frequency ranges.
• Matching Networks: Employed in matching networks to optimize impedance matching between different circuit stages.
• Oscillators: Utilized in oscillators to provide the necessary inductance for oscillation.
• Wireless Communication Devices: Found in wireless devices like smartphones, tablets, and Bluetooth modules.

Features:

• Inductance: 2.2 uH (microhenries).
• Tolerance: ±5%.
• Package Size: 0603 (0.06 inch x 0.03 inch).
• Mounting Style: Surface Mount Technology (SMT).

Benefits:

• High Q Factor: Provides low energy loss and high efficiency in resonant circuits.
• Compact Size: Saves valuable board space in miniaturized electronic devices.
• Excellent Self-Resonant Frequency: Ensures stable performance at high frequencies.
• Reliable Performance: Coilcraft is a reputable manufacturer known for producing high-quality inductors.

Additional Details:

The 0603AF-222XJR inductor features a ceramic core and wound wire construction, providing stable inductance over a wide range of operating conditions. The 0603 package size makes it suitable for automated assembly processes. The self-resonant frequency (SRF) is a critical parameter to consider when selecting an inductor for high-frequency applications, as it determines the frequency at which the inductor's performance begins to degrade. The inductor's DC resistance (DCR) should also be considered, as it contributes to power loss. When selecting an inductor, ensure that its current rating is sufficient for the intended application. Datasheets provide comprehensive information on the inductor's electrical characteristics, mechanical dimensions, and environmental ratings. Always consult the datasheet to ensure proper usage and integration into the circuit design.
