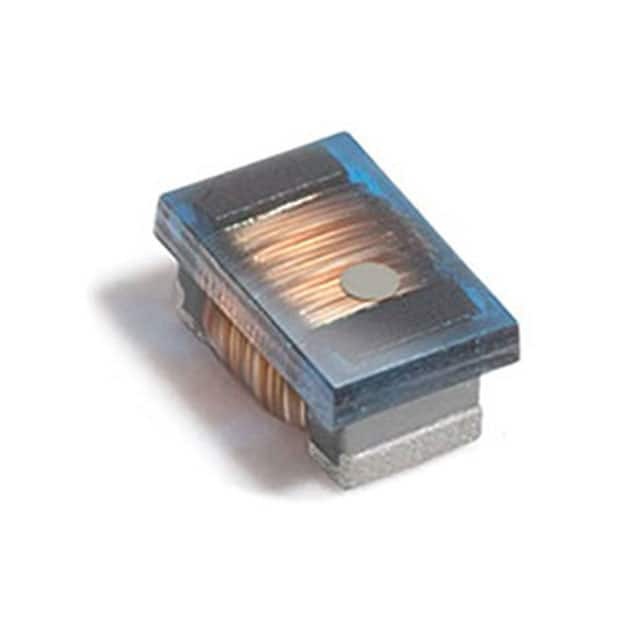

0603AF-102XJRW

Name: 0603AF-102XJRW
Brand: Coilcraft
SKU: 1114997
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0603AF-102XJRW
Manufacturer	Coilcraft
Catalog	Fixed Inductors
Description	FIXED IND 1UH 400MA 840MOHM SMD / 1 µH Unshielded Inductor 400 mA 840mOhm Max 0603 (1608 Metric)
Datasheet	0603AF-102XJRW Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	COILCRAFT
Series	0603AF
Package	Strip
Material - Core	Ferrite
Inductance	1 µH
Tolerance	±5%
Current Rating (Amps)	400 mA
Shielding	Unshielded
DC Resistance (DCR)	840mOhm Max
Q @ Freq	17 @ 7.9MHz
Frequency - Self Resonant	400MHz
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	7.9 MHz
Mounting	SMD (SMT)
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Dimension	0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max)	0.036" (0.91mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	2457-0603AF-102XJE_,2457-0603AF-102XJE_-ND,2457-0603AF-102XJE_TR-ND,2457-0603AF-102XJEW,2457-0603AF-102XJRW
Standard Package	1
Win Source Part Number	1114997-0603AF-102XJRW
Ultra Librarian 3D Model	Ultra Librarian 0603AF-102XJRW CAD Model

Alternative Products

Description

The 0603AF-102XJRW is a fixed inductor from Coilcraft.

Series: 0603AF
Shielding: Unshielded
Height: 0.036 inches
Width: 0.071 inches
Inductance: 1 μH
Inductance Tolerance: ±5 percent
Core Material: Ferrite
Q @ Freq: 17 @ 7.9MHz
Frequency Self-Resonant: 400MHz
DC Resistance (DCR): 840mOhm Max
RoHS Compliant: Yes
Temperature Range: -40 degrees Celsius to 85 degrees Celsius
Alternative Parts: 0603AF102XJRW
