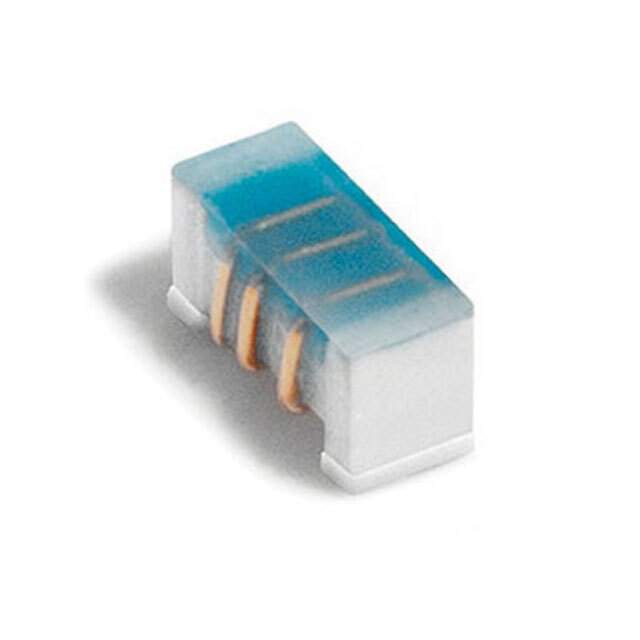

0402DC-3N9XGRW Real Image
Same model may have multiple batches, images only for reference.

0402DC-3N9XGRW

Part No 0402DC-3N9XGRW
Manufacturer Coilcraft
Catalog Fixed Inductors
Description FIXED IND 3.9NH 2.05A 46MOHM SMD
Datasheet
0402DC-3N9XGRW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features Unshielded Wirewound Inductor 46mOhm Max 0402 (1005 Metric) -
Manufacturer Coilcraft
Series 0402DC
Package Strip
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package 0402 (1005 Metric)
Case / Package 0402
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 2457-0402DC-3N9XGRW, 2457-0402DC-3N9XGRWTR-ND
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904500-0402DC-3N9XGRW
Ultra Librarian 3D Model Ultra Librarian 0402DC-3N9XGRW CAD Model

Description

The Coilcraft 0402DC-3N9XGRW is an unshielded wirewound inductor with a maximum resistance of 46 mOhm.

  • Type: unshielded wirewound inductor
  • Maximum Resistance: 46 mOhm
  • Mounting: surface mount (SMT)
  • Package Size: 0402 (1005 Metric)
  • Series: 0402DC series
  • Operating Temperature Range: -40°C to 125°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Popular Choice For: a wide range of electronic applications, including power supplies, voltage regulators, and DC-DC converters.
