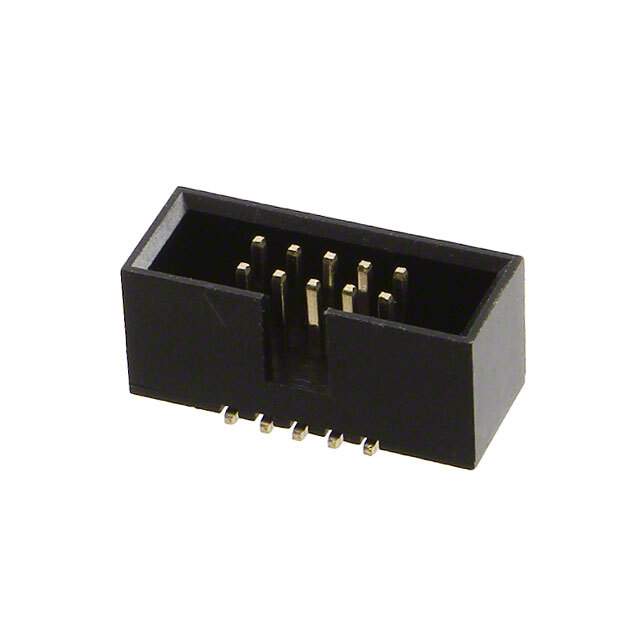

3220-10-0300-00 Real Image
Same model may have multiple batches, images only for reference.

3220-10-0300-00

Part No 3220-10-0300-00
Manufacturer CNC Tech
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 10POS 1.27MM / Connector Header Surface Mount 10 position 0.050" (1.27mm)
Datasheet
3220-10-0300-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr CNC Tech
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.213" (5.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Finish - Post Gold
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T
Features Keying Slot
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness - Post Flash
Base Product Number 3220-10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 1175-1629,3220-10-0300-00-ND,Q14324428-A
Standard Package 320
Win Source Part Number 1146970-3220-10-0300-00
Ultra Librarian 3D Model Ultra Librarian 3220-10-0300-00 CAD Model

Description

The 3220-10-0300-00 is a male pin header connector designed for board to cable/wire applications.

  • Pitch: 0.050 inches (1.27mm)
  • Row Spacing: 0.050 inches (1.27mm)
  • Design: Shrouded 4-wall
  • Keying: Slot
  • Contact Finish: Gold
  • Finish Thickness: Flash
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Flammability Rating: UL94 V-0
  • Temperature Range: -40°C to 105°C
  • Current Rating: 1A
  • RoHS Compliant: Yes
  • REACH: Unaffected
