Part No 1003-001-0100180
Manufacturer CNC Tech
Catalog USB, DVI, HDMI Connectors

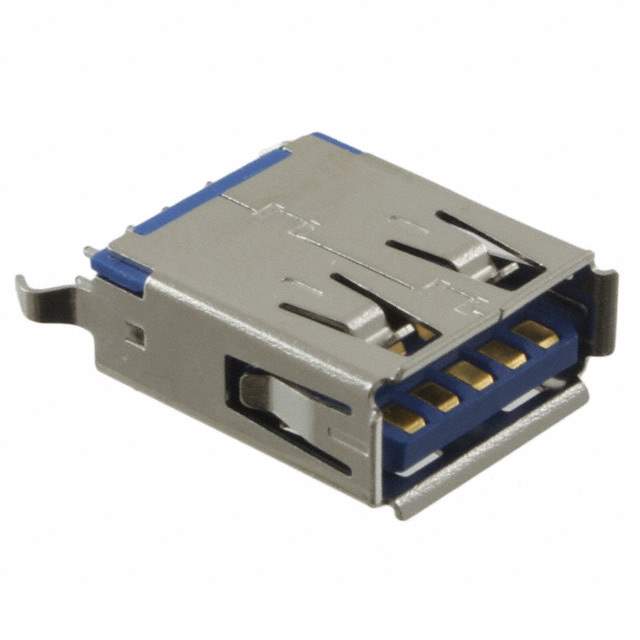

Description CONN RCPT USB3.0 TYPEA 9POS VERT  /  USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole
Datasheet
1003-001-0100180 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr CNC Tech
Package Tray
Connector Type USB-A (USB TYPE-A)
Number of Contacts 9
Gender Receptacle
Specifications USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Type Through Hole
Mounting Feature Vertical
Termination Solder
Features Board Lock
Temperature Range - Operating -40°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1.5A
Mating Cycles 5000
Contact Finish Gold
Shell/Shielding Material Brass, Steel
Material Flammability Rating UL94 V-0
Base Product Number 1003-001
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 1175-1266,1.003E+13
Standard Package 100
Win Source Part Number 1202903-1003-001-0100180
Ultra Librarian 3D Model Ultra Librarian 1003-001-0100180 CAD Model

Description

This USB-A (USB TYPE-A) connector from CNC Tech features a board lock and is designed for solder termination.

  • Contact Finish: Gold
  • Suitable for: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) applications
  • Mounting: Vertical
  • Mating Cycles: Up to 5000
  • Current Rating: 1.5A
  • Temperature Range: -40°C to 85°C
  • Package: Tray
  • Standard Package: 100
