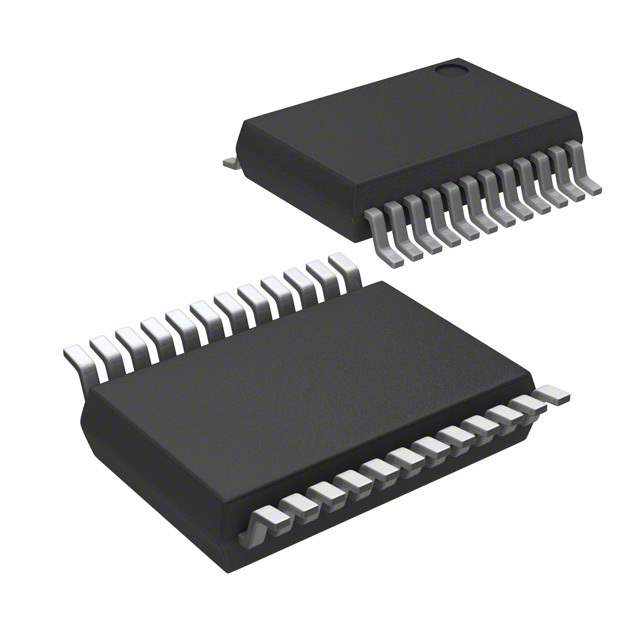

FX919BD5 Real Image
Same model may have multiple batches, images only for reference.

FX919BD5

Part No FX919BD5
Manufacturer CML Microcircuits
Catalog RF Misc ICs and Modules
Description HALF-DUPLEX 4FSK PACKET DATA MOD / RF IC Modulator, Discriminator General Purpose 3.3V ~ 5V Supply 24-SSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Misc ICs and Modules
Mfr CML Microcircuits
Package Tube
Product Status Active
Function Modulator, Discriminator
RF Type General Purpose
Secondary Attributes 3.3V ~ 5V Supply
Mounting Type Surface Mount
Package / Case 24-SSOP (0.209", 5.30mm Width)
Supplier Device Package 24-SSOP
Base Product Number FX919
Standard Package 59 pcs
MSL Level 1 (Unlimited)
ECCN 5A991G
HTSUS 8542.39.0001
Win Source Part Number 872467-FX919BD5
Ultra Librarian 3D Model Ultra Librarian FX919BD5 CAD Model

Description

The 872467-FX919BD5 is a RF modulator and discriminator integrated circuit manufactured by CML Microcircuits.

  • Application: general-purpose RF applications
  • Operating Voltage: 3.3V to 5V
  • Features: excellent modulation and demodulation performance
  • Suitable for: wireless communication systems, remote control applications, and RF test equipment
  • Package: 24-SSOP
  • Mounting: surface mountable
