Same model may have multiple batches, images only for reference.

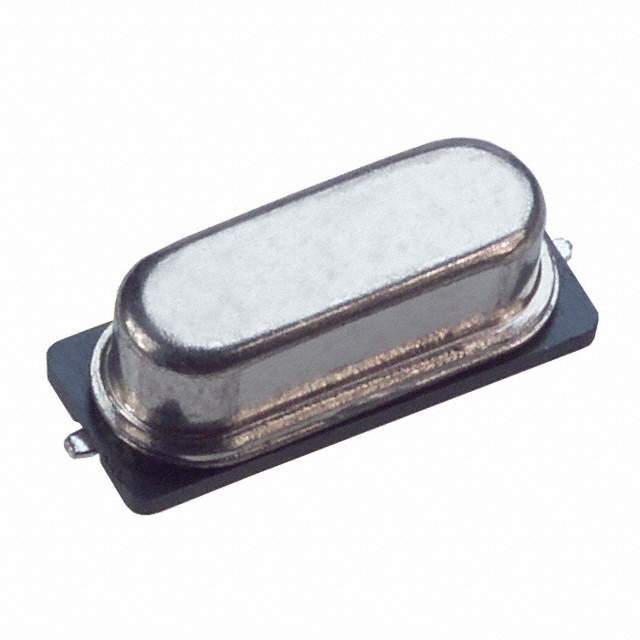

HCM4912000000ABJT Real Image
Same model may have multiple batches, images only for reference.

HCM4912000000ABJT

Part No HCM4912000000ABJT
Manufacturer Citizen Finedevice Co Ltd
Catalog Crystals
Description CRYSTAL 12.0000MHZ 18PF SMD / 12 MHz ±30ppm Crystal 18pF 80 Ohms HC-49/US
Datasheet
HCM4912000000ABJT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Citizen Finedevice Co Ltd
Series HCM49
Package Tape & Reel
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.169" (4.30mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names HCM4912000MABJT,HCM49 12.000MABJ-UT,Q2715339,300-6127-2-NDR,300-8548-1,HCM49-12.000MABJT,300-6127-1,300-6127-2,300-8548-1-ND,300-8548-2-ND,300-8548-6-ND,HCM4912.000MABJUT,300-6127-1-NDR,300-8548-2-NDL,HCM49-12.000MABJTR,300-6127-6,300-6127-6-NDR,300-8548-2,300-8548-6,HCM49-12.000MABJ-UT
Standard Package 1,000
Win Source Part Number 999209-HCM4912000000ABJT
Ultra Librarian 3D Model Ultra Librarian HCM4912000000ABJT CAD Model

Description

The Citizen Finedevice Co Ltd HCM49 crystal is a high-quality electronic component that is designed to provide a stable frequency output.

  • Frequency: 12 MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±50ppm
  • Operating Temperature Range: -10°C to 60°C
  • Load Capacitance: 18pF
  • Package Type: HC-49/US
  • Mounting Type: Surface Mount Technology (SMT)
  • Packaging: Tape and Reel
  • Quantity per Package: 1000 pieces
  • MSL Level: 1 (unlimited)
  • ECCN: EAR99
