Same model may have multiple batches, images only for reference.

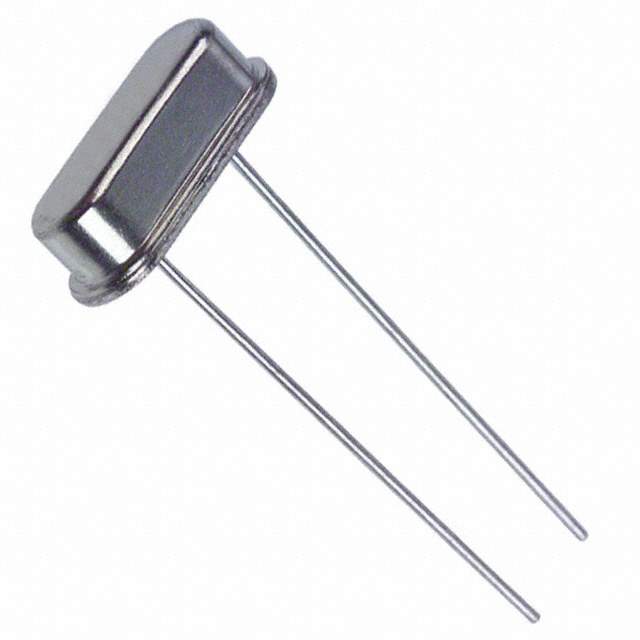

HC-49/U-S8000000ABJB Real Image
Same model may have multiple batches, images only for reference.

HC-49/U-S8000000ABJB

Part No HC-49/U-S8000000ABJB
Manufacturer Citizen Finedevice Co Ltd
Catalog Crystals
Description CRYSTAL 8.0000MHZ 18PF T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Citizen Finedevice Co Ltd
Packaging Bulk
Type MHz Crystal
Frequency 8MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting Style Through Hole
Manufacturer Package HC-49/US
Dimension 0.453" L x 0.183" W (11.50mm x 4.66mm)
Height - Seated (Maximum) 0.138" (3.50mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802374-HC-49/U-S8000000ABJB
Ultra Librarian 3D Model Ultra Librarian HC-49/U-S8000000ABJB CAD Model

Description

The Citizen Finedevice Co Ltd 802374-HC-49/U-S8000000ABJB is an 8MHz crystal component designed for through-hole mounting with Citizen Finedevice Co Ltd.

  • Frequency: 8MHz
  • Mounting Type: Through Hole
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • ESR: 100 Ohms
  • Temperature Range: -10°C to 60°C
  • Package Type: HC-49/US
  • Height: 0.138" (3.50mm)
  • Supply/Demand Status: Balanced
  • Popularity: High
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
