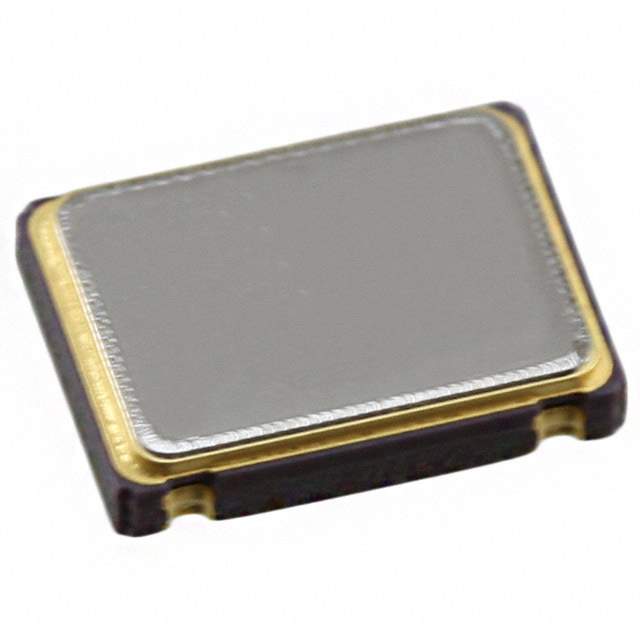

CSX-750FBC20000000T Real Image
Same model may have multiple batches, images only for reference.

CSX-750FBC20000000T

Part No CSX-750FBC20000000T
Manufacturer Citizen Finedevice Co Ltd
Catalog Oscillators
Description XTAL OSC XO 20.0000MHZ CMOS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Citizen Finedevice Co Ltd
Packaging Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 20MHz
Function Enable/Disable
Output CMOS
Supply Voltage (V) 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Maximum) 15mA
Mounting Style SMD
Manufacturer Package 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Maximum) 0.063" (1.60mm)
Current - Supply (Disable) (Maximum) 5mA
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806976-CSX-750FBC20000000T
Ultra Librarian 3D Model Ultra Librarian CSX-750FBC20000000T CAD Model

Description

The CSX-750FBC20000000T oscillator is manufactured by Citizen Finedevice Co Ltd.

  • Frequency: 20MHz
  • Frequency Stability: ±100ppm
  • Mounting Type: SMD
  • Operating Temperature Range: -20°C to 70°C
  • Height: 0.063" (1.60mm)
  • Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
