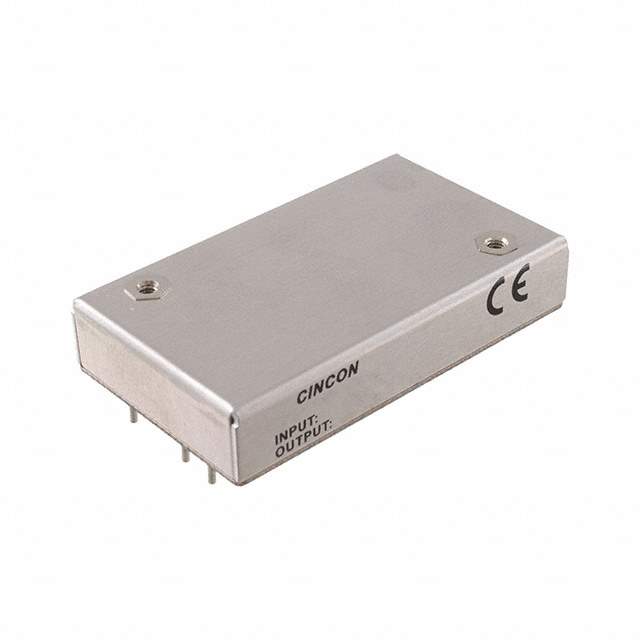

Same model may have multiple batches, images only for reference.

ECLB75W-48S05

Name: ECLB75W-48S05
Brand: Cincon Electronics Co. LTD
SKU: 1337741
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ECLB75W-48S05
Manufacturer	Cincon Electronics Co. LTD
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 75W / Isolated Module DC DC Converter 1 Output 5V 15A 18V - 75V Input
Datasheet	ECLB75W-48S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Cincon Electronics Co. LTD
Series	ECLB75W (75W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	15A
Power (Watts)	75 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	92%
Mounting Type	Through Hole
Package / Case	7-DIP Module, 6 Leads
Size / Dimension	2.05" L x 1.20" W x 0.40" H (52.0mm x 30.5mm x 10.2mm)
Control Features	Enable, Active High
Approval Agency	CE
Standard Number	62368-1
Base Product Number	ECLB75W
Standard Package	8
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1337741-ECLB75W-48S05
Ultra Librarian 3D Model	Ultra Librarian ECLB75W-48S05 CAD Model

Alternative Products

Description

The ECLB75W (75W) is an isolated module type power supply from Cincon Electronics Co. LTD. Cincon Electronics Co. LTD. is the manufacturer, and ECLB75W (75W) is the product.

Features: Remote on/off
Package Dimension: 2.05" L x 1.20" W x 0.40" H (52.0mm x 30.5mm x 10.2mm)
Suitable For: ITE (Commercial) applications
Voltage Input: 18V to 75V
Voltage Isolation: 2.25 kV
Voltage Output: 5V
Efficiency: 92%
Current Output: 15A
Mounting Type: Through-hole
Temperature Range - Operating: -40°C ~ 85°C (With Derating)
Approvals: CE
Standard Number: 62368-1
